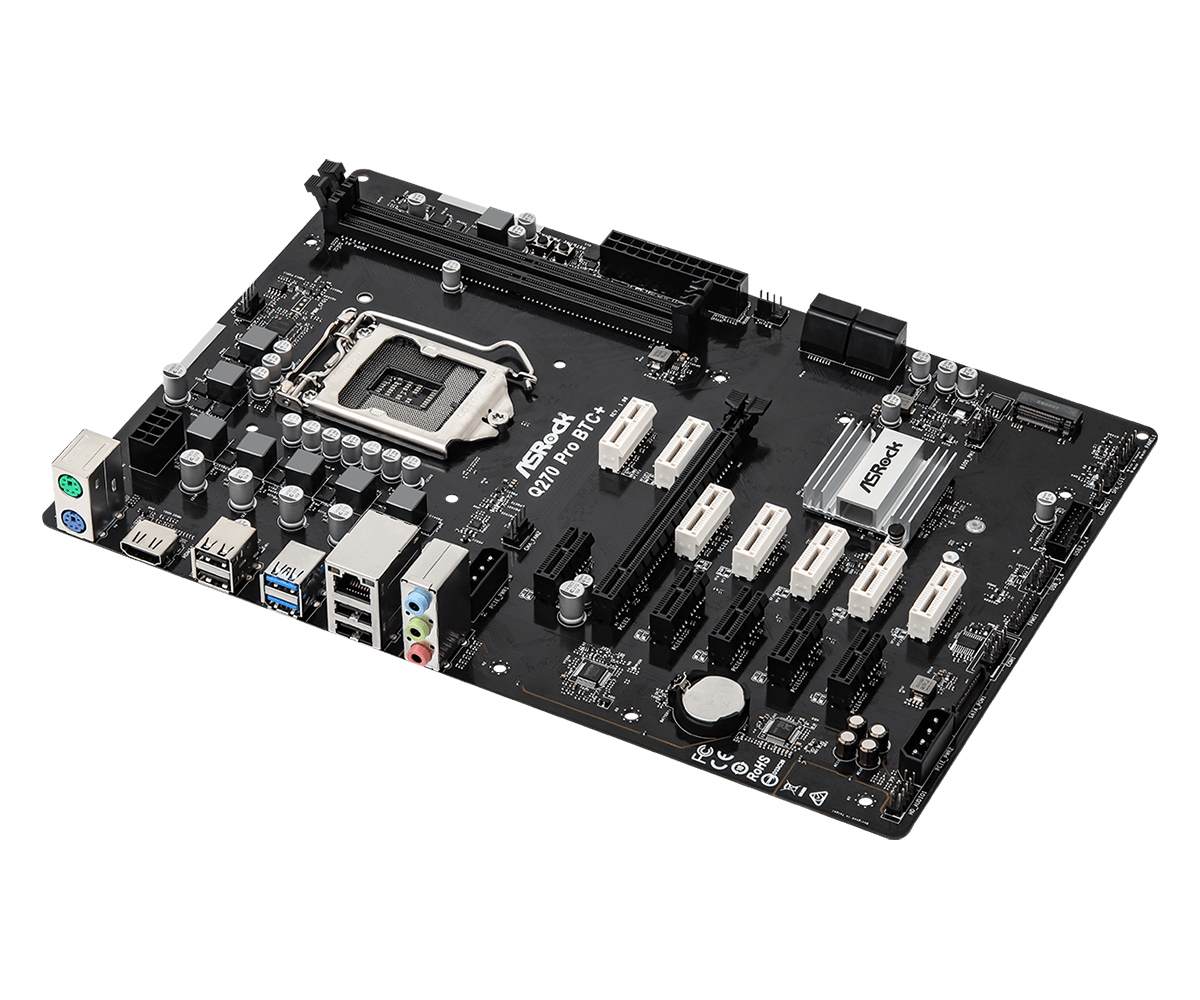

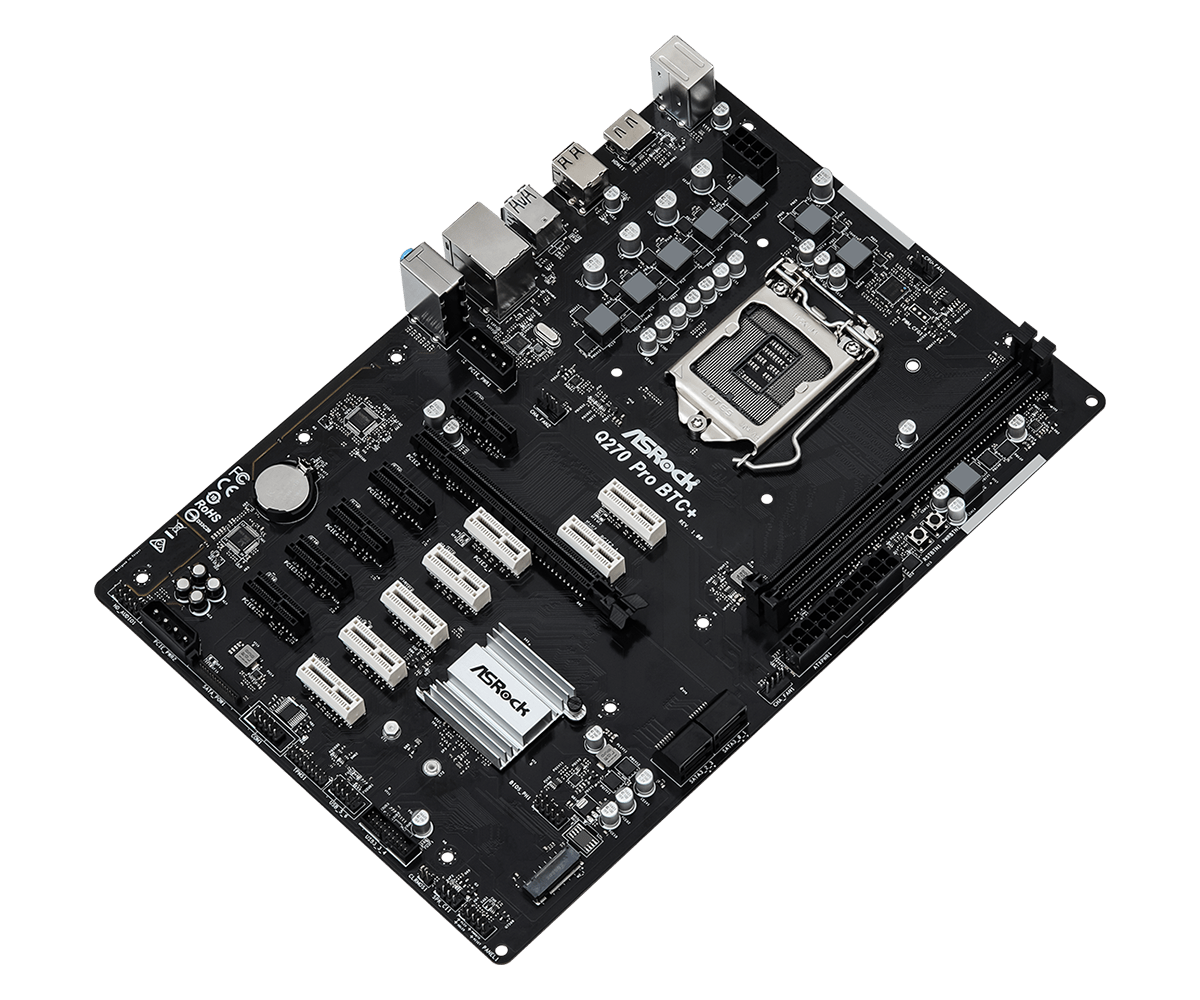

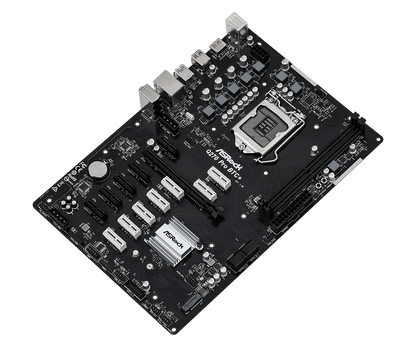

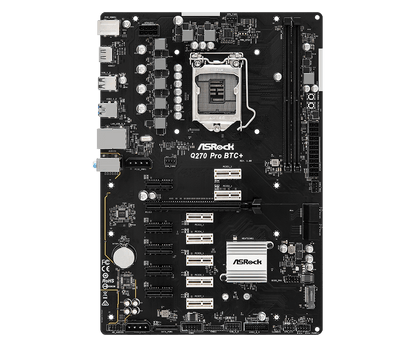

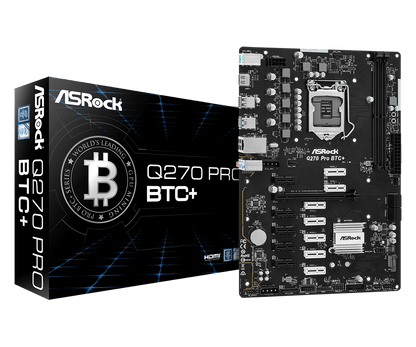

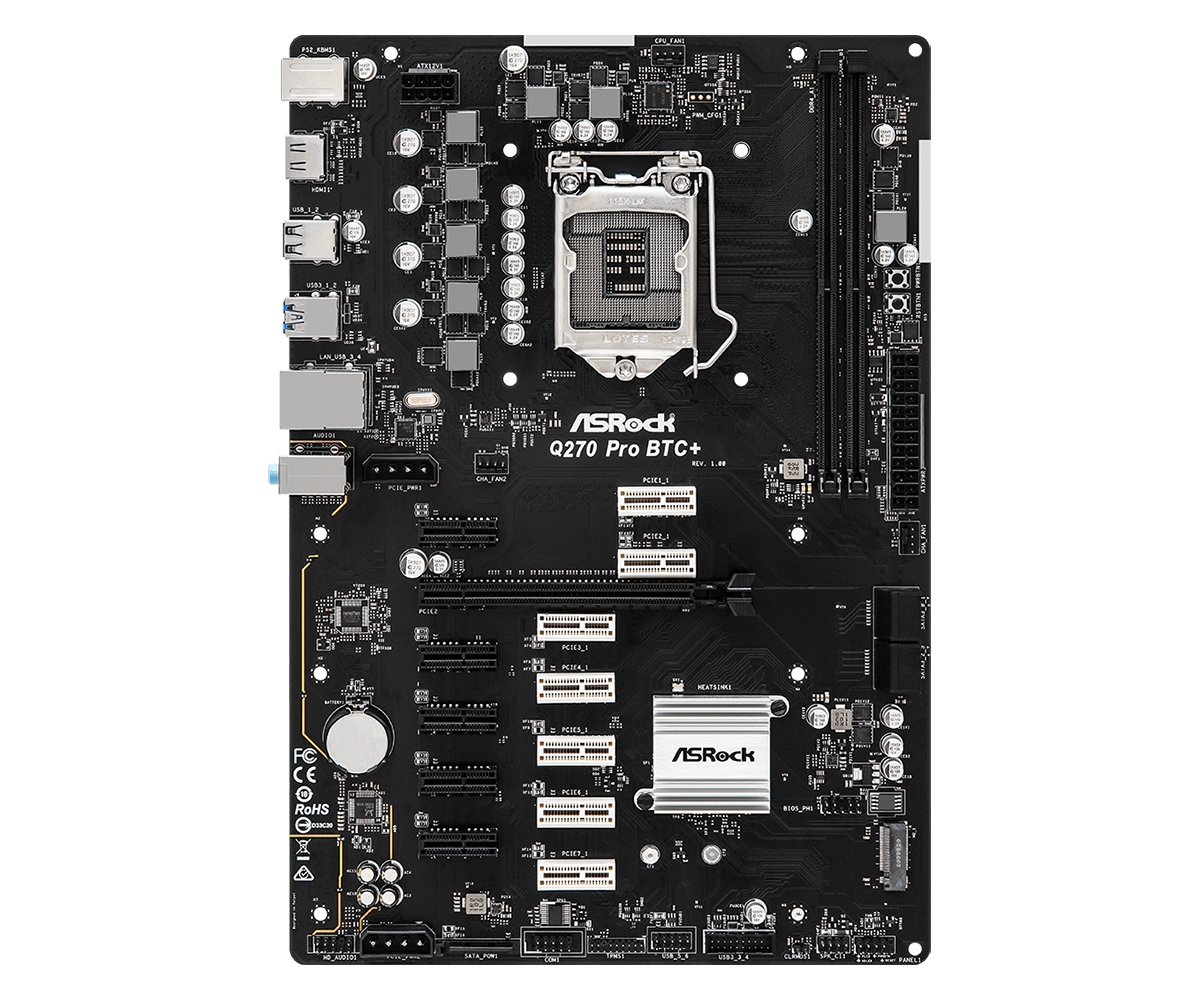

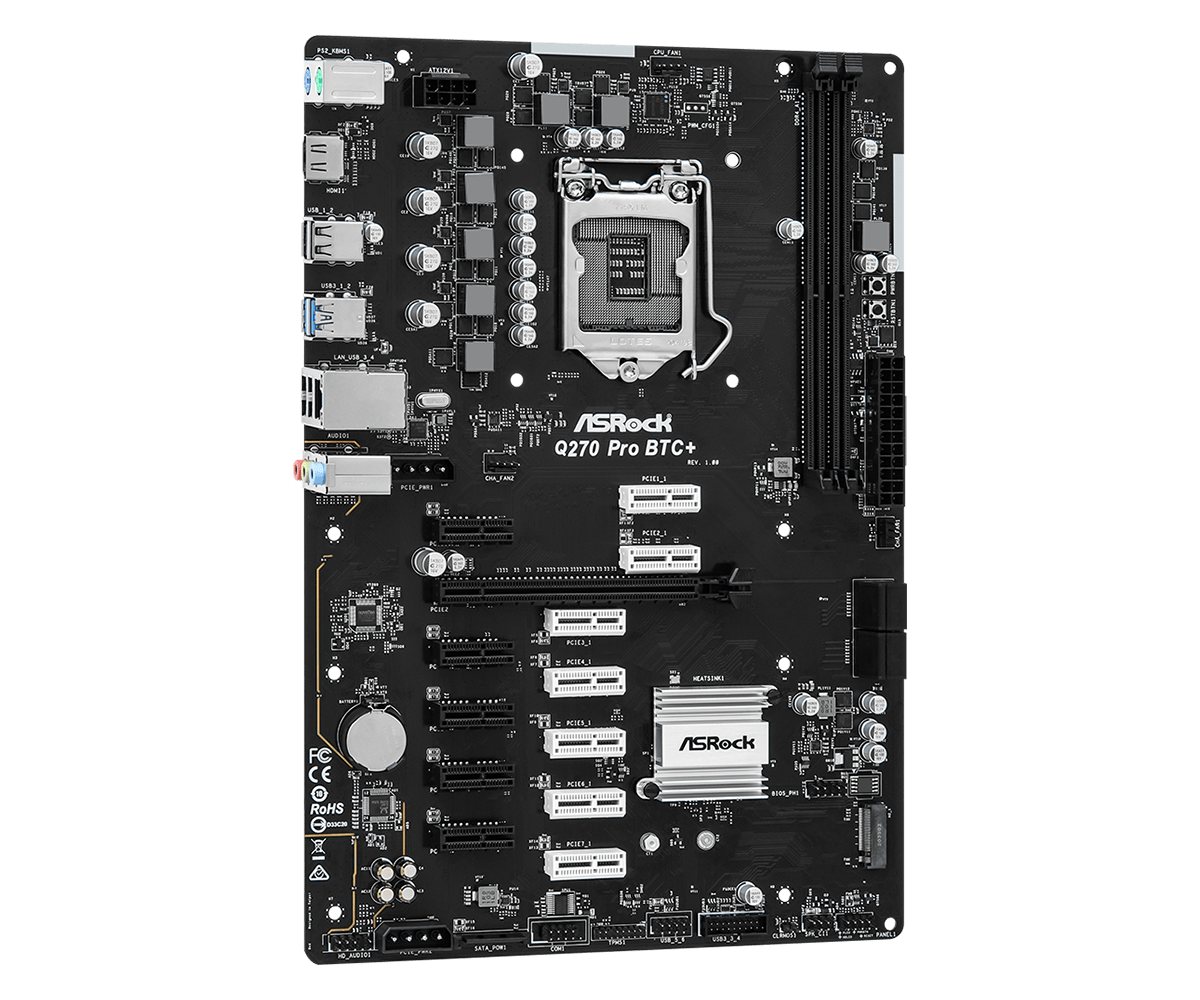

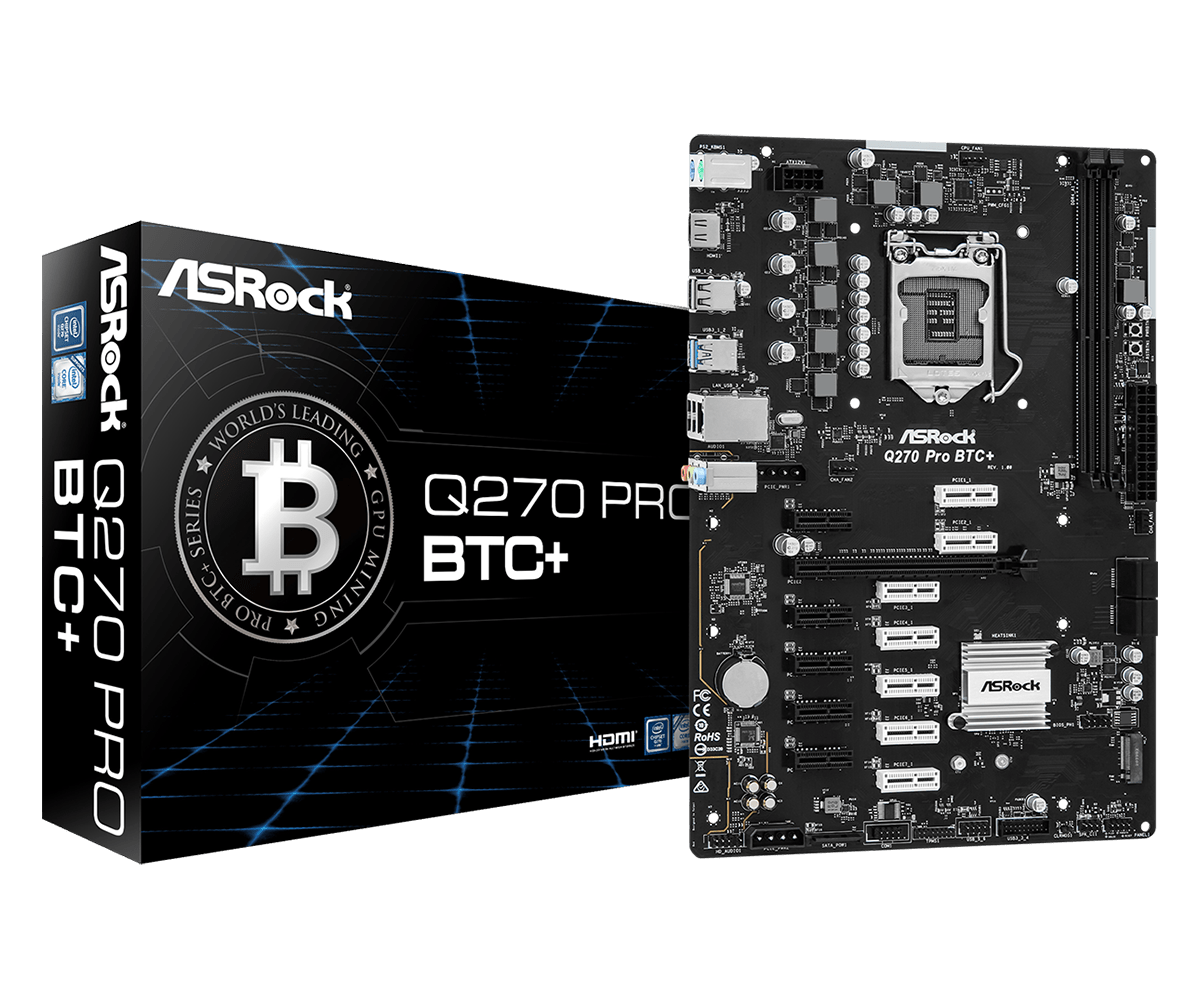

ASRock Q270 Pro BTC+ Bitcoin Mining Motherboard
$249.00
$479.00
ASRock Q270 Pro BTC+ Bitcoin Mining Motherboard
- Supports 7th and 6th Generation Intel
Core i5/i3/Pentium /Celeron Processors - Supports DDR4 2400/2133 MHz
- 1 PCIe 3.0 x16, 12 PCIe 3.0 x1
- Graphics Output: HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 M.2 (SATA3)
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- Intel Gigabit LAN
- Onboard Power On / Reset Button
Specification:
-
CPU- Supports 7th and 6th Generation Intel Core i5/i3/Pentium/Celeron Processors (Socket 1151)
- Supports CPU up to 91W
- Digi Power design
- 6 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology -
Chipset- Intel Q270
- Supports Intel vPro Technology
- Supports Intel Active Management Technology 11.6*
*Intel vPro Technology and Intel Active Management Technology 11.6 can be supported only with the Intel Core vPro processor family -
Memory- Dual-Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. the capacity of system memory: 32GB**
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake-up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-adjustment -
Graphics- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI 1.4 Port
*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection -
LAN- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE -
Slots- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 12 x PCI Express 3.0 x1 Slots
*Supports NVMe SSD as boot disks -
Storage- 4 x SATA3 6.0 Gb/s Connectors
- 1 x M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module -
RAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
Connector- 1 x System Panel Header
- 1 x TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 2 x PCIe Power Connectors
- 1 x SATA Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Power Button
- 1 x Reset Button
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. -

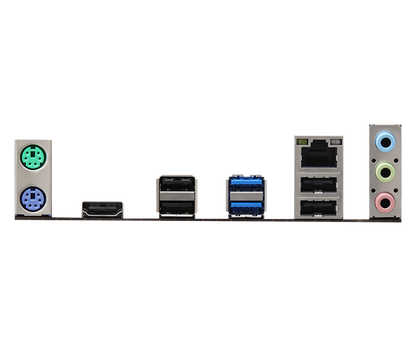

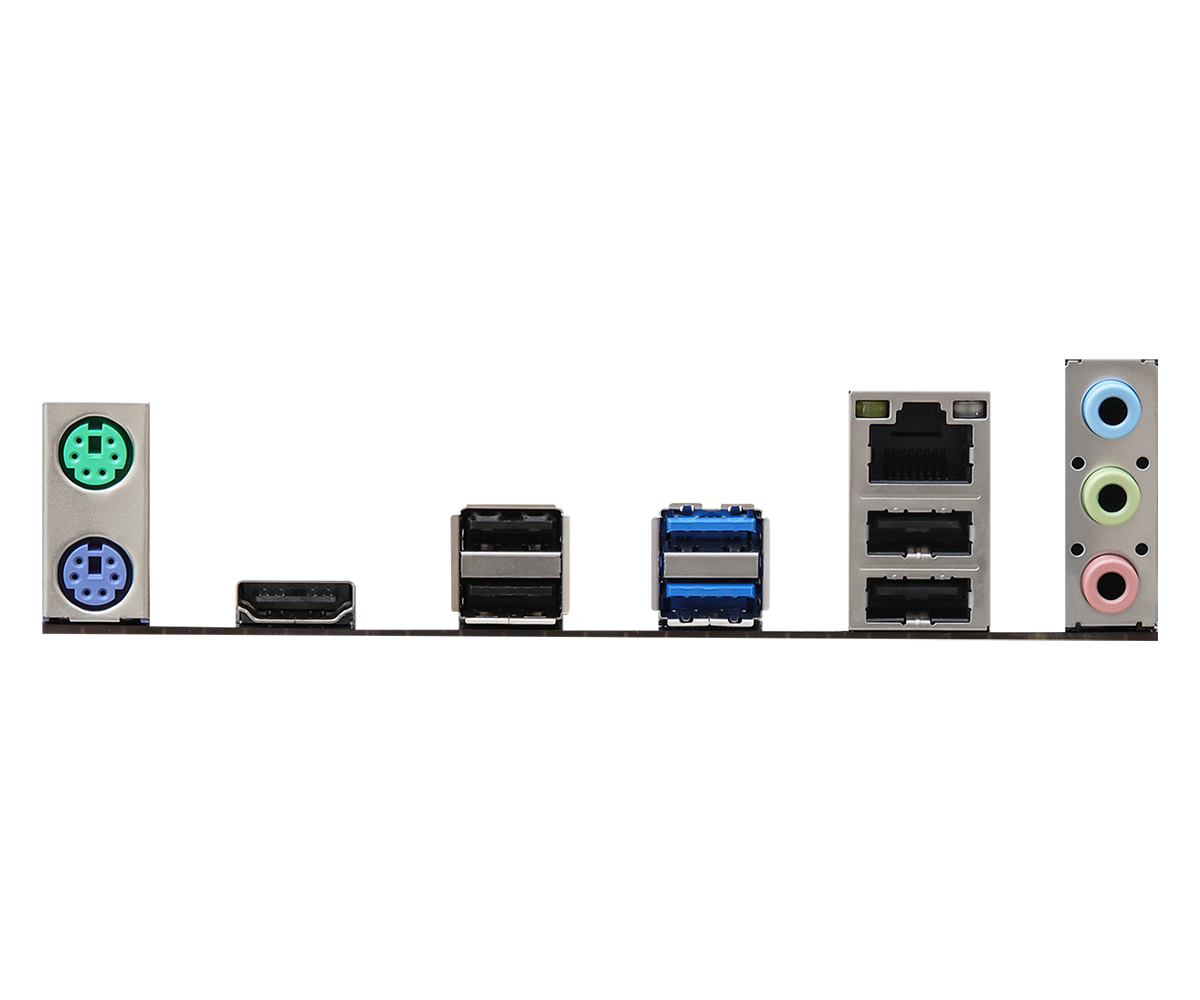

Rear Panel I/O- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone -
Unique FeatureASRock Super Alloy
- Premium 45A Power Choke
- Sapphire Black PCB
- High-Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop -
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket -
Hardware Monitor- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust the chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore -
Form Factor- ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
- Solid Capacitor design -
OS- Microsoft Windows 10 64-bit (For 7th Gen Intel CPU)
- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU)*
*To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. -
Certifications- FCC, CE
- ERP/EuP ready (ErP/EuP ready power supply is required)
