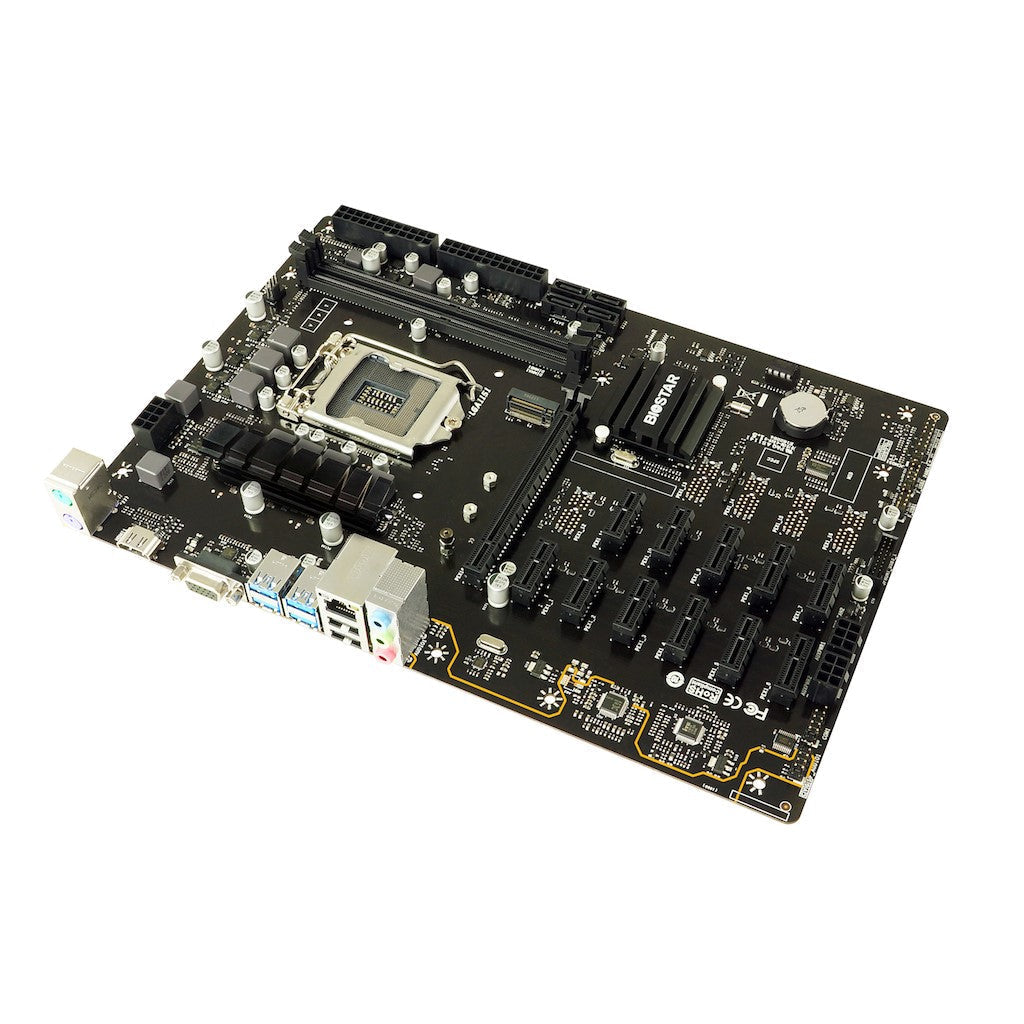

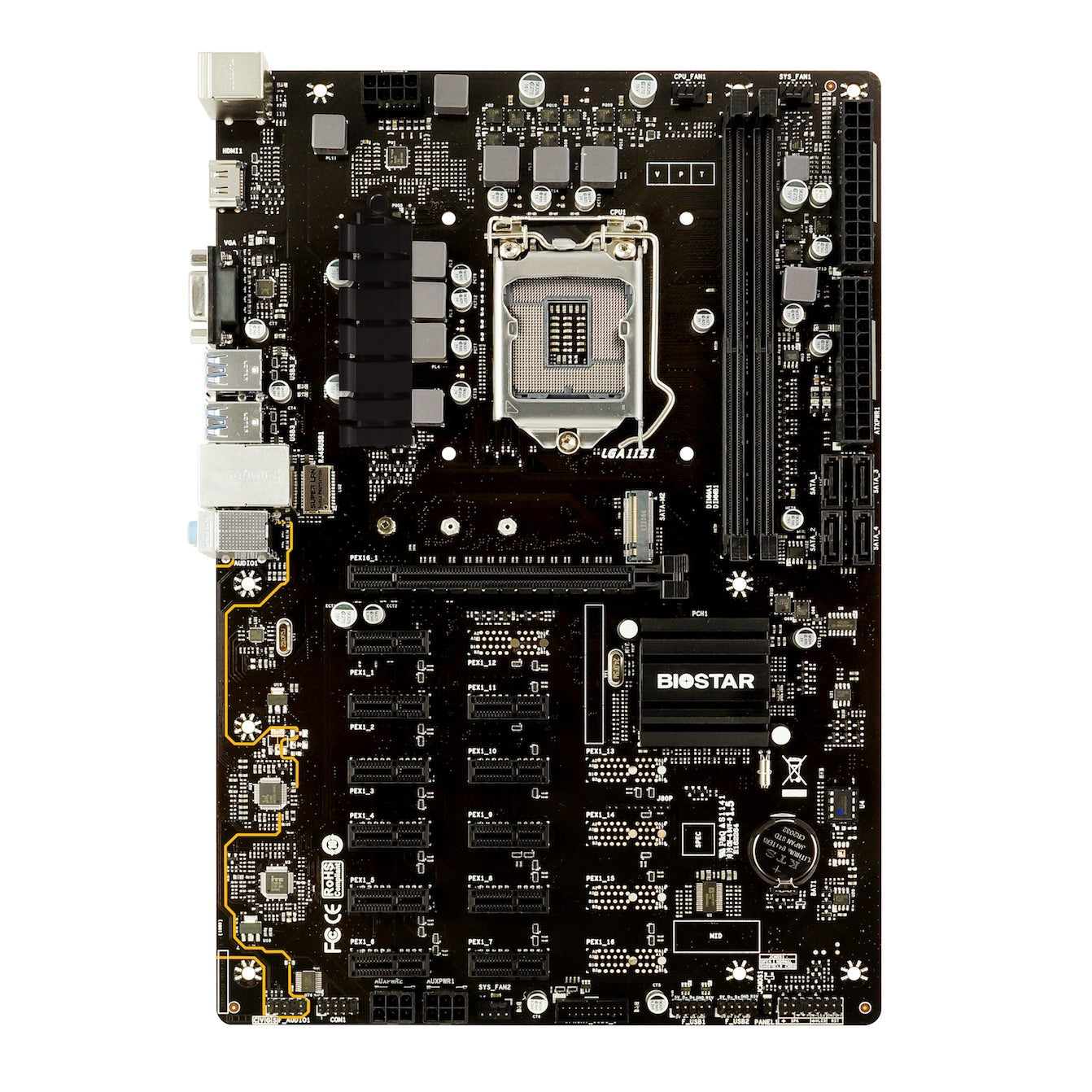

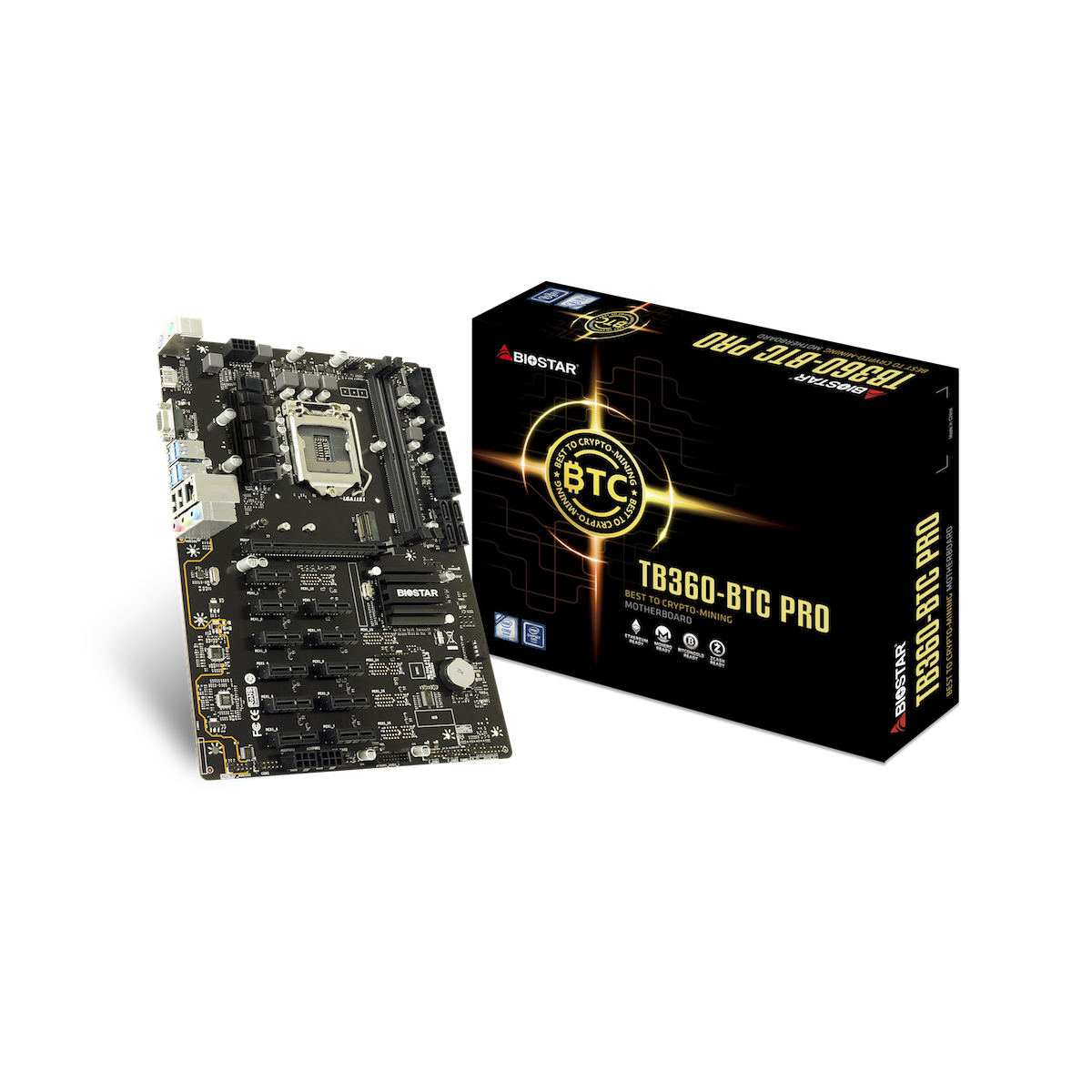

BioStar TB360-BTC PRO/ 2.0 LGA 1151 Mining Motherboard
$279.00
$429.00
BioStar TB360-BTC PRO/ 2.0 LGA 1151 Mining Motherboard
Enrich Your Life Right Now
TB360-BTC PRO / PRO 2.0 supports up to 12 graphics cards with 12 PCI-E 3.0 slots. BIOSTAR is breaking the rules to reveal innovation opportunities, and there is a possibility of you earning more money.
We Have the Most Professional Design for You
TB360-BTC PRO / PRO 2.0 has 12 x PCI-E 3.0 slots that allow for USB riser cables to be plugged directly into it, and the neat layout of PCI-E slots can prevent overcurrent and short-circuit damage making mining more smooth.
Making Dual PSUs Possible
There are two 24Pin power supply connectors on the TB360-BTC PRO / PRO 2.0 for your overall power. It also supports two power supplies at the same time and no need to set up jumpers.
Blockchain Grade Protection
PC systems can be damaged or destroyed by electrical surges. Biostar TB360-BTC PRO / PRO 2.0 offers SUPER LAN Surge Protection which limits surge voltages reaching protected crypto mining rigs to safe levels.
Fast, faster, the fastest
BIOSTAR TB360-BTC PRO / PRO 2.0 mining motherboard uses an Intel B360 chipset to support native PCI-E up to 12 slots. Every slot has a dedicated channel which means you can enjoy an unimpeded mining experience.
Saving Up to 1 Computer
TB360-BTC PRO / PRO 2.0 supports up to 12 graphics cards not only saving more money but also high performance. Compared with the 6-GPU motherboard, TB360-BTC PRO / PRO 2.0 can help you save a set of CPU, motherboard, SSD, memory card, and other PC peripherals. Bringing you the best cost-saving solution is still our original intention.
Never too Late to Mine
To compare with two crypto mining machines with TB250-BTC / PRO 2.0, one ultimate rig with TB360-BTC PRO / PRO 2.0 efficiently boosts crypto mining performance to maximize your profitability and make the lowest cost per MH/s
.
User-Friendly Applications for Rig Maintenance
TB360-BTC PRO / PRO 2.0 includes PCI-E slot detection BIOS boot screen. The unique BIOS for the BIOSTAR BTC series motherboard, which can detect the GPU state on POST screen before entering the operating system.
A Simple Setup for Crypto Mining
TB360-BTC PRO / PRO 2.0 has an exceptional Mining Mode BIOS setting which is enabled by default that helps you set up easier and boosts mining performance effectively in an organized way.
BRAND NEW
ONE YEAR WARRANTY
STOCK IN AUSTRALIA
AUSTRALIAN SELLER
Product Specification:-
| Chipset | Intel B360 |
| CPU SUPPORT | 9th Gen Intel Core
i9 LGA 1151 Processor i7 LGA 1151 Processor i5 LGA 1151 Processor i3 LGA 1151 Processor 8th Gen Intel Core i7 LGA 1151 Processor i5 LGA 1151 Processor i3 LGA 1151 Processor 8th Gen Intel Pentium LGA 1151 Processor 8th Gen Intel Celeron LGA 1151 Processor Maximum CPU TDP (Thermal Design Power): 95Watt 8th *Generation Intel Core Processor Family only support 300-Series. |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB of Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module |
| INTEGRATED VIDEO | By CPU model
Supports DX12 Supports HDCP |
| STORAGE | 4 x SATA III Connectors (6GB/s)
1 x M.2 (M Key) Connector(6Gb/s): Support SATA SSD |
| LAN | Realtek RTL8111H – 10/100/1000Mb/s Controller
Support Super LAN Surge Protection |
| AUDIO CODEC | Realtek ALC887 8-Channel HD Audio |
| USB | 6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot
11 x PCI-E 3.0 x1 Slots *Maximum VGA card mining support are depending on VGA Driver or mining software. |

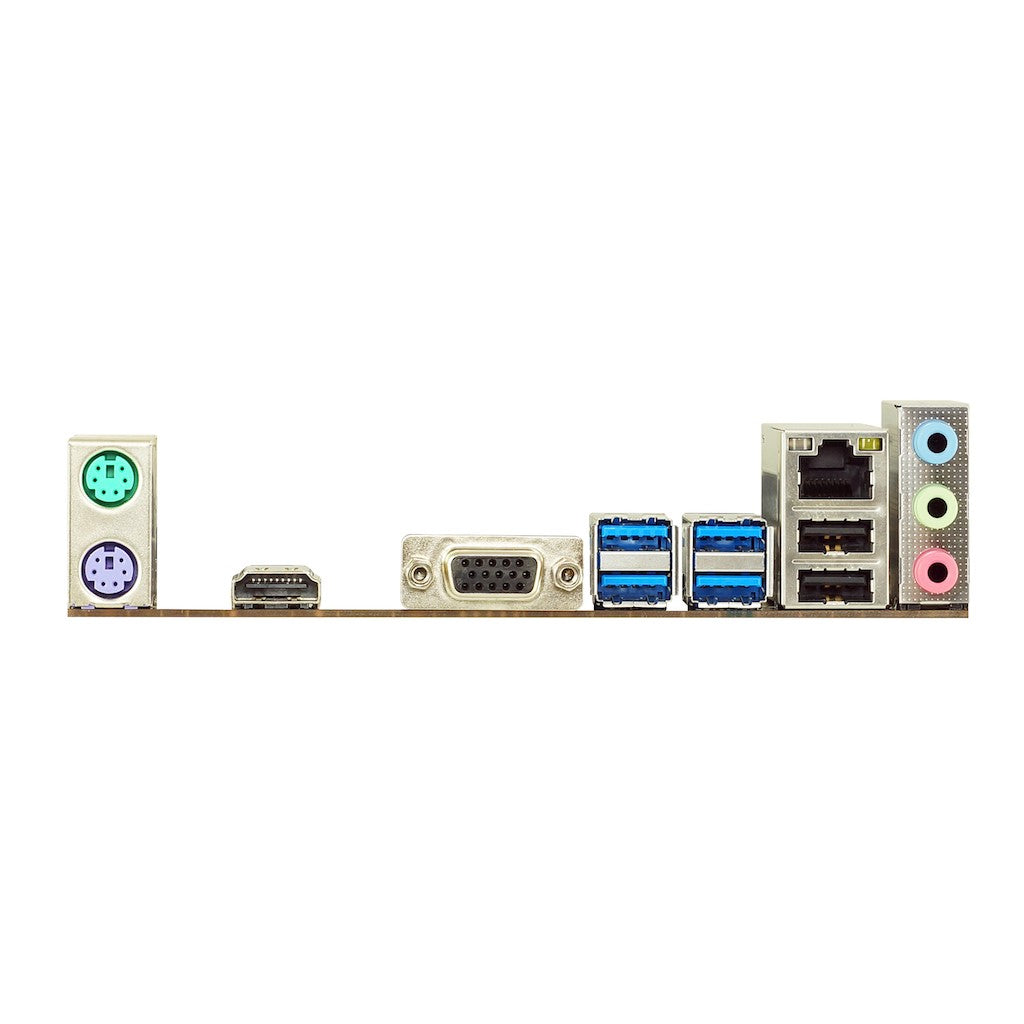

| REAR I/O | 1 x PS/2 Mouse
1 x PS/2 Keyboard 4 x USB 3.1 Gen1 Ports 2 x USB 2.0 Ports HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 VGA Port , resolution up to 1920 x 1200 @60Hz LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA III Connectors (6Gb/s) Front Audio Header Front Panel Header CPU Fan Connector 2 x System Fan Connector 1 x 8-Pin Power Connector 2 x 6-Pin PCIe Power Connector 2 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring
CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit)
Linux ethOS Mining OS ?Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BullGuard |
| ACCESSORIES | 2 x SATA Cable
I/O Shield DVD Driver User Manual |
| FEATURES | PCI-E Slot Detection BIOS Boot Screen |
