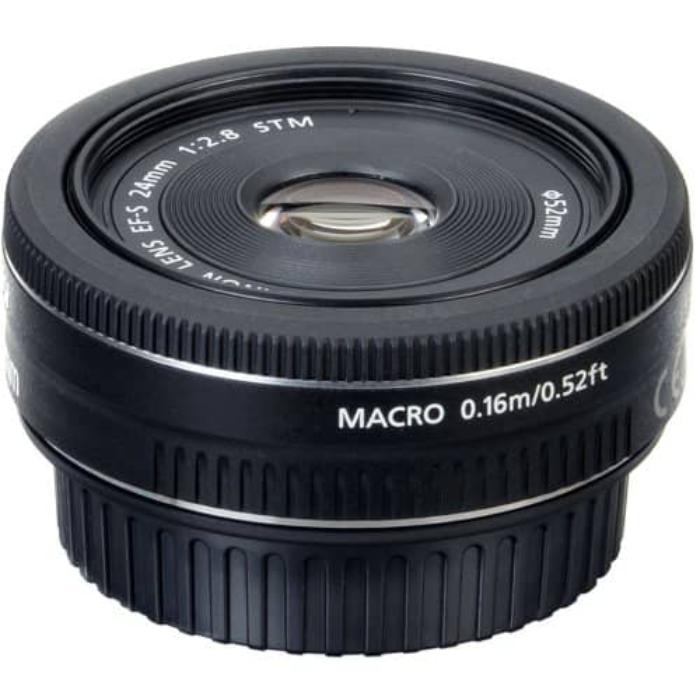

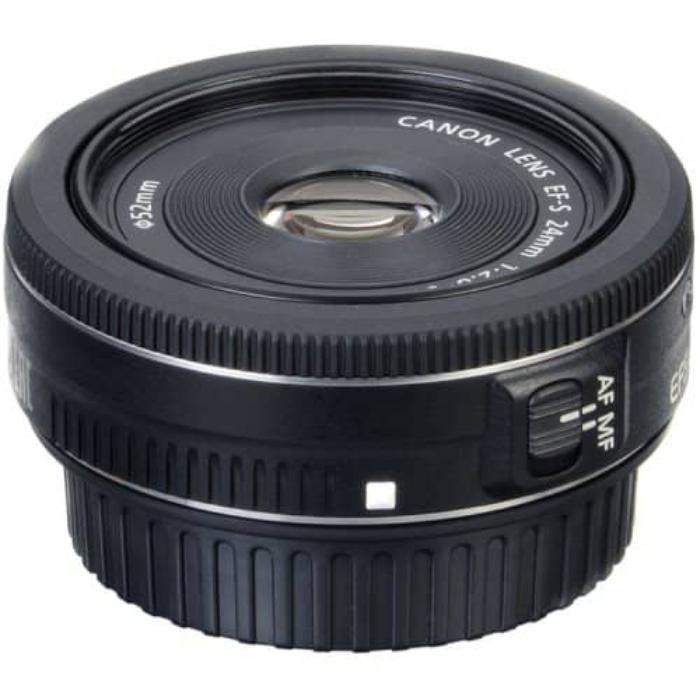

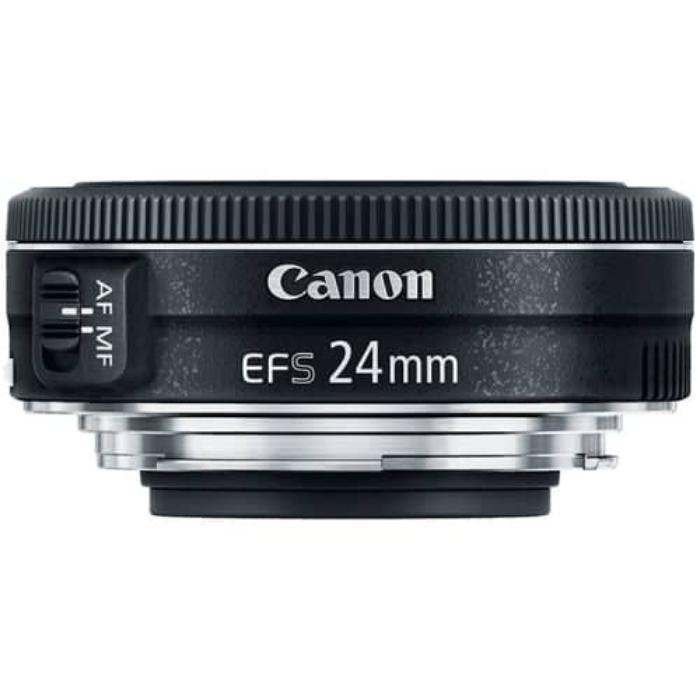

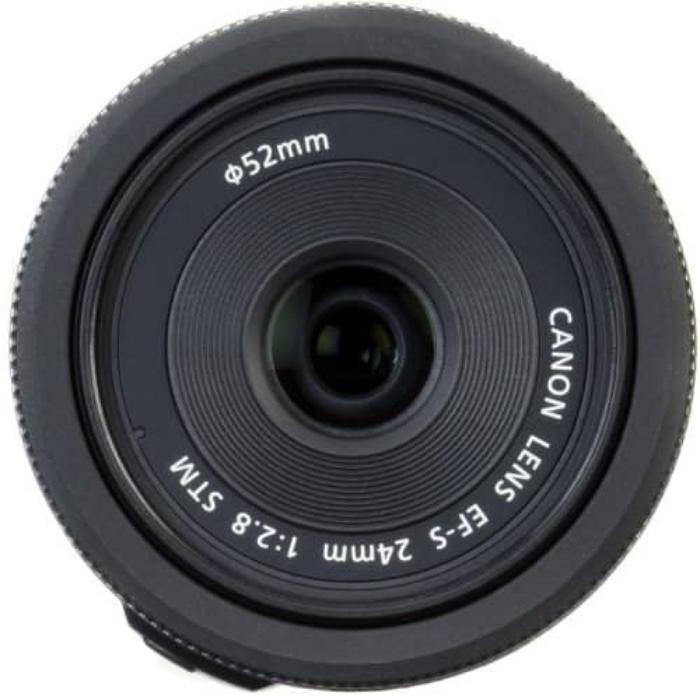

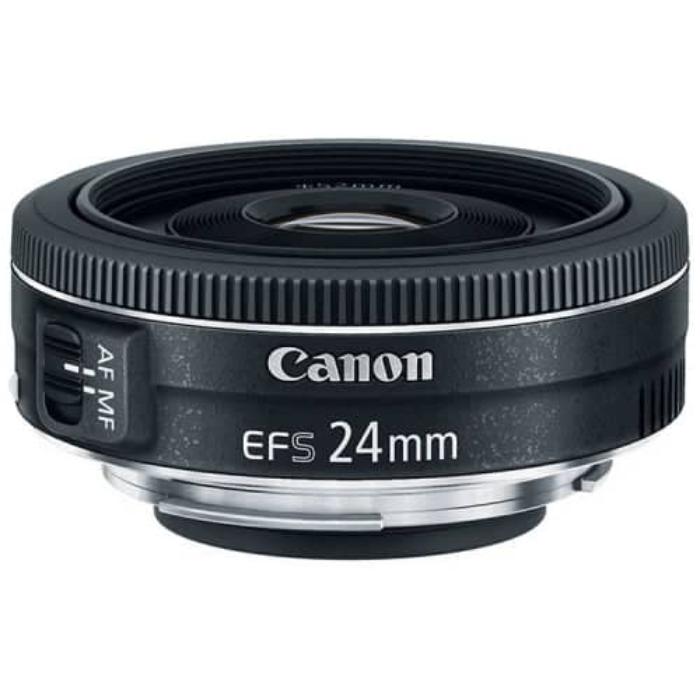

Canon EFS 24mm f/2.8 STM Camera Lens - Black
- EF-S-Mount Lens/APS-C Format
- 38.4mm (35mm Equivalent)
- Aperture Range: f/2.8 to f/22
- One Aspherical Element
- Super Spectra Coating
- STM Stepping AF Motor
- Rounded 7-Blade Diaphragm
Product Description
Recognizable by its truly thin profile, along with an advanced autofocus motor, the EF-S 24mm f/2.8 STM from Canon is a 38.4mm-equivalent prime designed for APS-C-format DSLRs. Its optical design features one aspherical element, which helps to reduce distortion and spherical aberrations for high sharpness and clarity. A Super Spectra coating has also been applied, which helps to minimize lens flare and ghosting for improved contrast and color fidelity in bright lighting conditions. Additionally, benefitting both photo and video applications, an STM stepping AF motor is used to realize quick, accurate, and near-silent autofocus performance.
Short normal-length prime is designed for use with APS-C-format Canon EF-S-mount DSLRs and provides a 38.4mm equivalent focal length. Modestly bright f/2.8 maximum aperture benefits working in low-light, affords control over depth of field, and helps to keep the overall physical design compact and lightweight.
Canon EFS 24mm f/2.8 STM Camera Lens
Pancake form factor measures less than 1"-thick for an ultra-portable, versatile design. One aspherical element limits distortion and spherical aberration in order to realize greater sharpness and accurate rendering. Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
An STM stepping AF motor realizes smooth, near-silent autofocus that is complemented by a rear focus system, advanced AF algorithms, and a high-speed CPU for fast AF performance. Additionally, full-time manual focus override is also available. Rounded seven-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
Specifications
| Image size | APS-C |
| 35mm film equivalent focal length (mm) | 38mm |
| Angle of view (horizontal, vertical, diagnal) | 59º 10', 50º 35',34º 55' |
| Lens construction (elements/groups) | 44717 |
| No. of diaphragm blades | 7 |
| Minimum aperture | 22 (1) |
| Closest focusing distance (m) | 0.16 |
| Maximum magnification (x) | 0.27 |
| Distance Information | Yes |
| AF actuator | STM |
Physical Specifications |
|
| Filter diameter (mm) | 52 |
| Max. diameter x length (mm) | 68.2 x 22.8 |
| Weight (g) | 125 |
Accessories |
|
| Lens cap | E52II |
| Lens hood | ES-52 |
| Lens case/pouch | LP811 |
| Rear cap | Lens Dust Cap E |
| Magnification with Extension Tube EF12 II | 0.77-0.50 |
| Magnification with Extension Tube EF25 II | 1.38-1.11 |
| Extender Compatiblity | Not Compatible |
