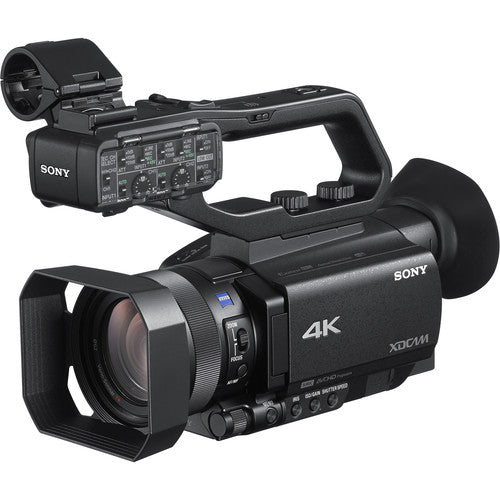

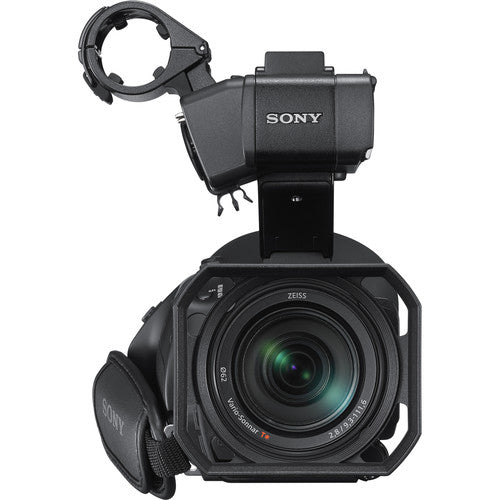

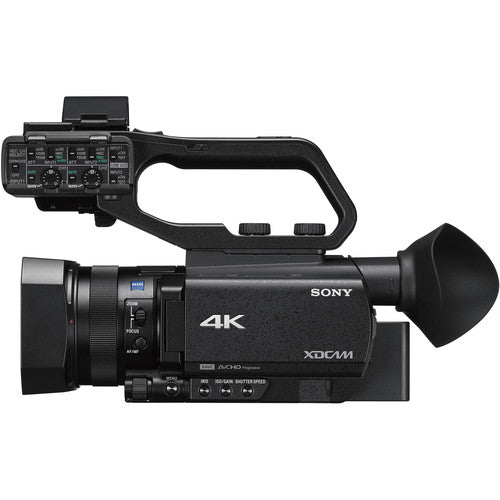

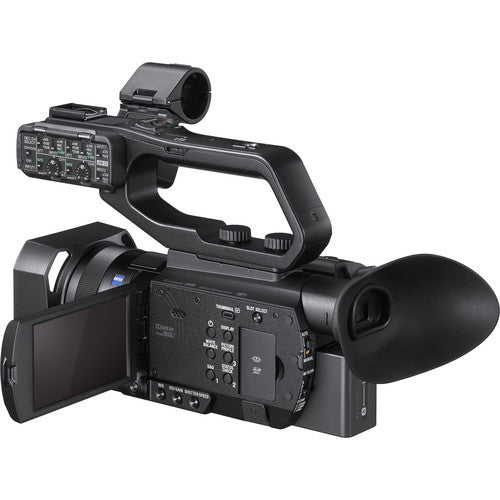

Sony PXW-Z90V 4K HD Compact NXCAM Camcorder
The Sony PXW-Z90V 4K HDR XDCAM camcorder offers phase-detection autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the PXW-Z90V camcorder features a stacked 1" Exmor RS CMOS sensor with UHD 4K (3840 x 2160) resolution, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor. It can record 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key). S-Log3/S-Gamut3 functions offer users additional image control. Additional features include built-in 2.4/5 GHz for multiple streaming via RTMP/RTMPS protocols and FTP options.
The PXW-Z90V's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking—a boon when shooting UHD 4K, especially for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus. The PXW-Z90V's 3.5" touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles. Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your 4K recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the PXW-Z90V's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.
Offers highly accurate focusing and tracking, especially useful when shooting sharp UHD 4K footage
The PXW-Z90V camera supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps
The PXW-Z90V's fixed 12x optical wide-angle zoom with 18x Clear Image Zoom technology in UHD 4K (24x in HD)
Specifications:
| Sensor Resolution: | Effective: 14.2 Megapixel |
| Image Sensor: | 1"-Type CMOS |
| Image Stabilization: | Optical in Integrated Lens |
| Built-In ND Filter: | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Capture Type: | Video Only |
| Shutter Speed: | 1/10000 to 1/6 Second |
| Gain: | -3 to 33 dB |
| Minimum Illumination: | 1.7 Lux at 1/30 Shutter Speed |
| White Balance: | 2300 to 15,000K |
| Focal Length: | 9.3 to 111.6mm (35mm Equivalent Focal Length: 29 to 348mm) |
| Optical Zoom Ratio: | 12x |
| Max Digital Zoom: | 48x |
| Minimum Aperture: | f/2.8 to 4.5 |
| Minimum Focus: Distance | Wide: 0.4" / 1.0 cm Telephoto: 39.4" / 100.1 cm |
| Filter Size: | 62 mm |
| Control Rings: | Focus Zoom |
| Focus Control: | Autofocus Manual Focus |
| Fast-/Slow-Motion Support: | Yes |
| Built-In Microphone Type: | Stereo |
| Audio Recording: | 2-Channel 24-Bit 48 kHz |
| IP Streaming: |
H.264, RTMP, RTMPS 1280 x 720 (3.0 Mb/s) 640 x 360 (1.0 Mb/s) |
| Media/Memory Card Slot: | Dual Slot: SD/SDHC/SDXC |
| Video I/O: |
1 x HDMI Output 1 x BNC (Composite) Output 1 x BNC (3G-SDI) Output |
| Audio I/O: |
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input |
| Power I/O: | 1 x Barrel Input |
| Other I/O: |
1 x Micro-USB 1 x Micro-USB Control 1 x 2.5 mm Sub-Mini (LANC) Control |
| Wireless: | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) NFC |
| Monitor: |
| Size: | 3.5" |
| Resolution: | 1,560,000 Dot |
| Display Type: |
Articulating LCD |
| Viewfinder: Type: | Built-In Electronic (OLED) |
| Size: | 0.39" |
| Resolution: | 2,360,000 Dot |
| Focus Type: | Auto and Manual Focus |
| Focus Mode: | Automatic, Manual Focus |
| Storage Temperature: | -4 to 40°F / -20 to 60°C |
| Battery Type: | Sony L-Series |
| Power Consumption: | 6.9 W |
| Tripod Mounting Thread: | 1/4"-20 Female |
| Dimensions (W x H x D): | 5.1 x 7.1 x 11.3" / 130 x 181.5 x 287 mm |
| Weight: | 2.2 lb / 1020 g |
