Blackmagic Design Studio Camera 4K Pro - Black
$3,489.00
$4,699.00
Blackmagic Design Studio Camera 4K Pro - Black
- Studio Camera 4K Pro - Studio Camera Sun Shade - Turret Dust Cap - External 12V DC Power Supply - International Sockets Adapters - Tally Decal Set - Ver:7.6 - Original Box Item
- HDMI Out: Camera video output works in HD or Ultra HD
- 12G-SDI Out Camera video audio and talkback in HD or Ultra HD
- 12G-SDI In: Program return video input, plus camera control
- 10G Ethernet: Connect and power the camera with a single cable
Product details
| Brand | Blackmagic Design |
| Connectivity Technology | Ethernet, HDMI |
| Special Feature | Lightweight, Low Light |
| Screen Size | 7 Inches |
| Optical Zoom | 2 x |
| Video Capture Resolution | 4K |
Overview
The Blackmagic Design Studio Camera 4K Pro is a compact and lightweight broadcast camera designed for live production and provides a variety of options to record and broadcast your video. New features include a lighter carbon fibre body, up to 25,600 ISO, 13 stops of dynamic range, a bigger tally light, HDMI output with camera control, 12G-SDI input and output, talkback within SDI, two USB Type-C ports for recording and control, a standard 5-pin broadcast headset jack, a speaker, built-in dual microphones, a 7 Inch HDR LCD, a redesigned sun hood, and 10G Ethernet.
The Blackmagic Studio 4K Pro Camera also provides features you'd expect to find in larger studio cameras, such as a large tally indicator with customizable number decals, talkback, a 5-pin broadcast headset plug, dual XLR audio input with phantom power, and 12G-SDI inputs/outputs. This camera also features HDMI output, and its new 10G Ethernet is an enormous pipe to use when broadcasting 4K video. You can even unplug all the HDMI and SDI cabling and utilize the 10G Ethernet to send all the video and data to a companion converter or switcher, which can even provide PoE to the camera, so you only need one cable. Its Micro Four Thirds lens mount allows you to utilize a wide range of professional lenses, and you can also control the lens remotely with the optional Zoom Demand and Focus Demand lens controllers.
Compact and Lightweight Design
Large broadcasters use expensive studio cameras that are extremely large, so they're not very portable. The distinctive Blackmagic Studio Camera has all the benefits of a large studio camera because it's a combination of camera and viewfinder all in a single compact design. It features a lightweight carbon fibre-reinforced polycarbonate body with innovative technology in a miniaturized design. The camera is designed for live production, so it's easy to track and frame shots with its large 7" viewfinder. The touchscreen has menus for camera settings, and there are knobs for brightness, contrast, and focus peaking. Plus, a tripod mount with 15mm LWS rod ports and a mounting plate is included for a fast setup.
Exceptional Low-Light Performance
In advanced cameras, ISO is a measurement of the image sensor's sensitivity to light. This means the higher the ISO the more gain can be added, so it's possible to shoot in natural light, or even at night. The Blackmagic Studio Camera features gain from -12 dB (100 ISO) up to +36 dB (25,600 ISO), so it's optimized to reduce grain and noise in images while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. The secondary high-base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set from the camera, or remotely from a switcher using the SDI or Ethernet remote camera control.
Cinematic Images in Live Production
The amazing 4K sensor combined with Blackmagic generation 5 colour science gives you the same imaging technology used in digital film cameras. That means you can now use cinematic images for live production. Plus, when combined with the built-in DaVinci Resolve primary colour corrector you get much better images than simple broadcast cameras. The colour corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for colour correction. The sensor features a resolution of 4096 x 2160, which is great for both HD and Ultra HD work. Plus, all models support from 23.98 up to 60 fps.
Affordable Photographic Lenses
With the popular MFT lens mount, Blackmagic Studio Cameras are compatible with a wide range of affordable photographic lenses. Photographic lenses are of incredible quality because they're designed for use in high-resolution photography. Plus, the active lens mount lets you adjust the lens remotely. To eliminate the need to reach around to adjust the lens zoom and focus, the optional focus and zoom demands let you adjust the lens from the tripod handles, just like a large studio camera. This means you avoid camera shake when adjusting the lens, so you can track shots and operate the camera without taking your hands off the tripod. It gives you the same feel as an expensive B4 broadcast lens.

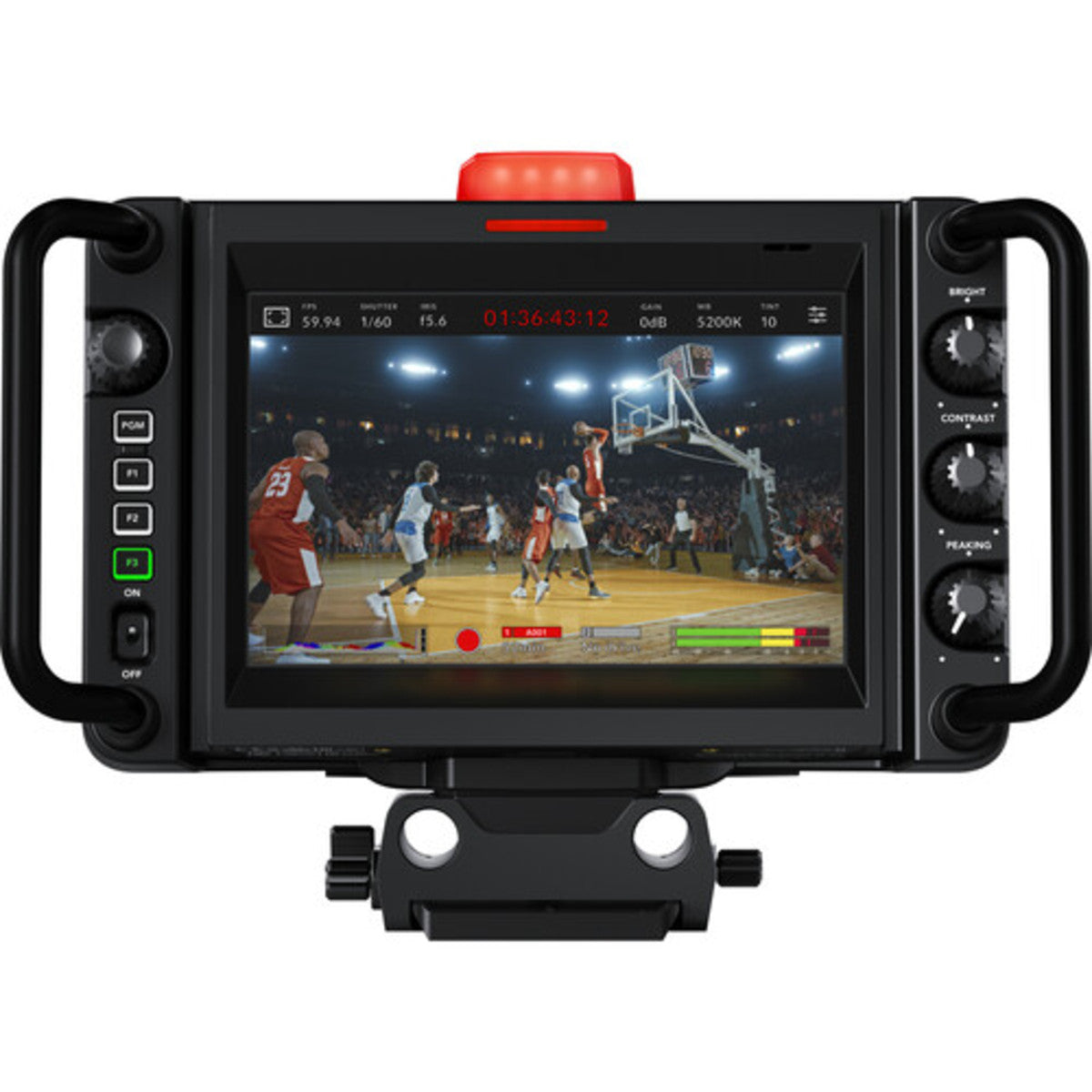

Frame Shots with a Large 7" Viewfinder
The large 7" high-resolution screen will transform how you work with the camera because it's big enough to make framing shots much easier. The Pro model features an HDR display with extremely high brightness, perfect outdoors in sunlight. On-screen overlays show status and record parameters, histograms, focus peaking indicators, levels, frame guides, and more. You can even apply 3D LUTs for monitoring shots with the desired colour and look. The touchscreen also has menus, and you can load and customize presets for different jobs. The included sunshade can be folded to protect the screen for transport, plus it's compatible with sunshades from the Blackmagic Studio Viewfinder.
Physical and Touchscreen Controls
Blackmagic Studio Cameras feature physical buttons and knobs, as well as controls on the touchscreen. Knobs on the right side of the camera allow adjusting of the brightness, contrast, and focus peaking. The focus peaking knob is incredibly useful as it lets you fine-tune the detail highlight, so you can get perfect focus as you zoom. The three function buttons on the left can have functions assigned to them, such as zebra, false colour, focus peaking, LUTs, and more. Plus, you can change the function assigned to each button in the menus. The touchscreen also includes a heads-up display with the most important shooting information, as well as menus for all camera settings, LUTs, and custom presets.
Built-In Tally for On-Air Status
Blackmagic Studio Cameras feature a very large tally light that illuminates red for on-air, green for preview, and orange for ISO recording. The tally light also includes clip-on transparent camera numbers, so it's easy for talent to see camera numbers from up to 20' away. The Blackmagic Studio cameras support the SDI tally standard used on all ATEM live production switchers and the HDMI tally used on ATEM Mini switchers. This means a director can cut between cameras and the tally information will be sent back to the cameras via the SDI program return feed, lighting up the tally light on the camera whenever it's on air. SDI tally eliminates complex wiring, so job setup is faster.
Specifications
| Sensor Resolution | Not Specified by Manufacturer |
| ISO Sensitivity | 100 to 25,600 |
| Gain | 0 to 18 dB |
| Signal-to-Noise Ratio | 63 dB |
Camera
| Lens Mount | Micro Four Thirds |
| Built-In ND Filter | None |
| Built-In Microphone Type | Stereo |
| Broadcast System Compatibility | NTSC, PAL |
Interfaces
| CCU Interface | None |
| Video Connectors |
1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x HDMI Output |
| Audio Connectors |
2 x 3-Pin XLR Input on Camera Body 1 x 1/8" / 3.5 mm Stereo Mic Level Input 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Input/Output |
| Other I/O |
2 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output 1 x RJ45 Ethernet Data, Control, Monitor, Video Input/Output |
Recording
| Recording Modes |
3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps |
| Audio Recording | Raw: 2-Channel 24-Bit 48 kHz LPCM Audio |
Display
| Display Type | Fixed Touchscreen LCD |
| Size | 7" |
| Resolution | 1920 x 1200 |
EVF Power
| Power Connectors |
1 x 4-Pin XLR (12 VDC) Input 1 x Barrel (12 VDC) Input |
| Power Consumption | >46 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
General
| Accessory Mount | 2 x 1/4"-20 Female |
| Tripod Mount | 3/8"-16 Female |
| Dimensions | 10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions) |
| Weight | 3.71 lb / 1.68 kg |
BRAND NEW
ONE YEAR WARRANTY
AUSTRALIAN SELLER
