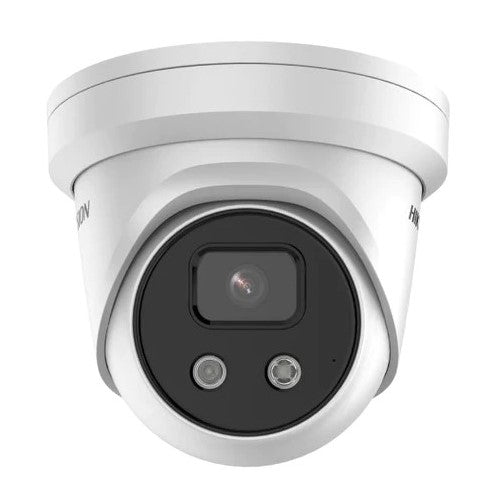

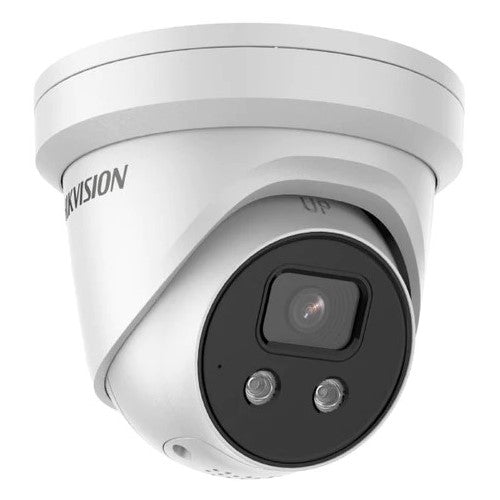

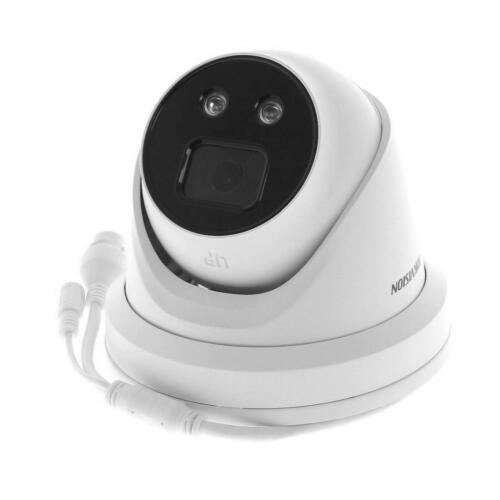

Hikvision DS-2CD2386G2-I(C) 8 MP AcuSense Powered-by-Darkfighter Fixed Turret Network Camera- Weather Proof
- High-quality imaging with 8 MP resolution

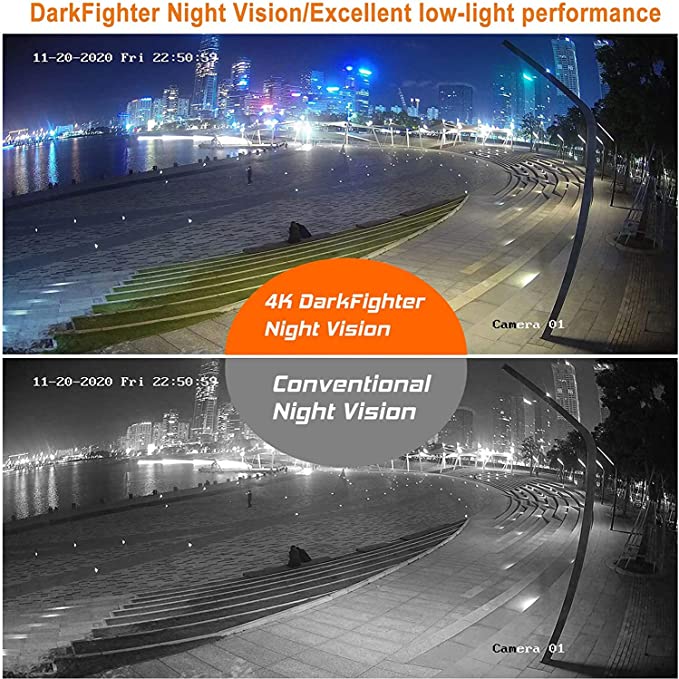

- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against a strong backlight by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
Product Description:
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Specifications :
Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV:
- 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
- 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
- 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
DORI
- 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
- 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
- 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
the Third stream is supported under certain settings.
Video Compression
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
The third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for mainstream and sub-stream
Target Cropping: Yes
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface
Network Storage:
MicroSD/SDHC/SDXC card (256 GB) local storage, NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with a high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser:
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-In Microphone -U: No
Reset Key: Yes
Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send an email, trigger recording, trigger capture
Deep Learning Function
Face Capture: Yes
General
Power: 12 VDC ± 25%, 0.48 A, max. 5.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
Dimension: Ø138.3 mm × 126.3 mm (Ø5.4" × 5")
Package Dimension: 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")
With Package Weight: Approx. 1020 g (2.2 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Brand-New
12-Month Warranty
