NBN HFC CM3500 Network Termination Device (NTD) - Pristine Refurbished NBN

NBN HFC CM3500 Network Termination Device (NTD)

$99.00 AUD
Skip to product information
NBN HFC CM3500 Network Termination Device (NTD) - Pristine Refurbished NBN

NBN HFC CM3500 Network Termination Device (NTD)

$99.00 AUD
Condition:Brand new
Out of stock

Free shipping

Australia-wide

12-month warranty

New & refurbished

14-day returns

Change of mind

Secure payment

Encrypted checkout

Overview

NBN HFC CM3500 Network Termination Device (NTD)

  • Official NBN HFC Network Termination Device (NTD)
  • Model: CM3500
  • Used for Hybrid Fibre Coaxial (HFC) NBN connections
  • Provides interface between NBN network and home router
  • Includes one active UNI-D port (up to four possible with ISP activation)
  • Coaxial input for HFC signal
  • Ethernet output to connect to router or gateway
  • Requires power adapter (typically 12V DC)

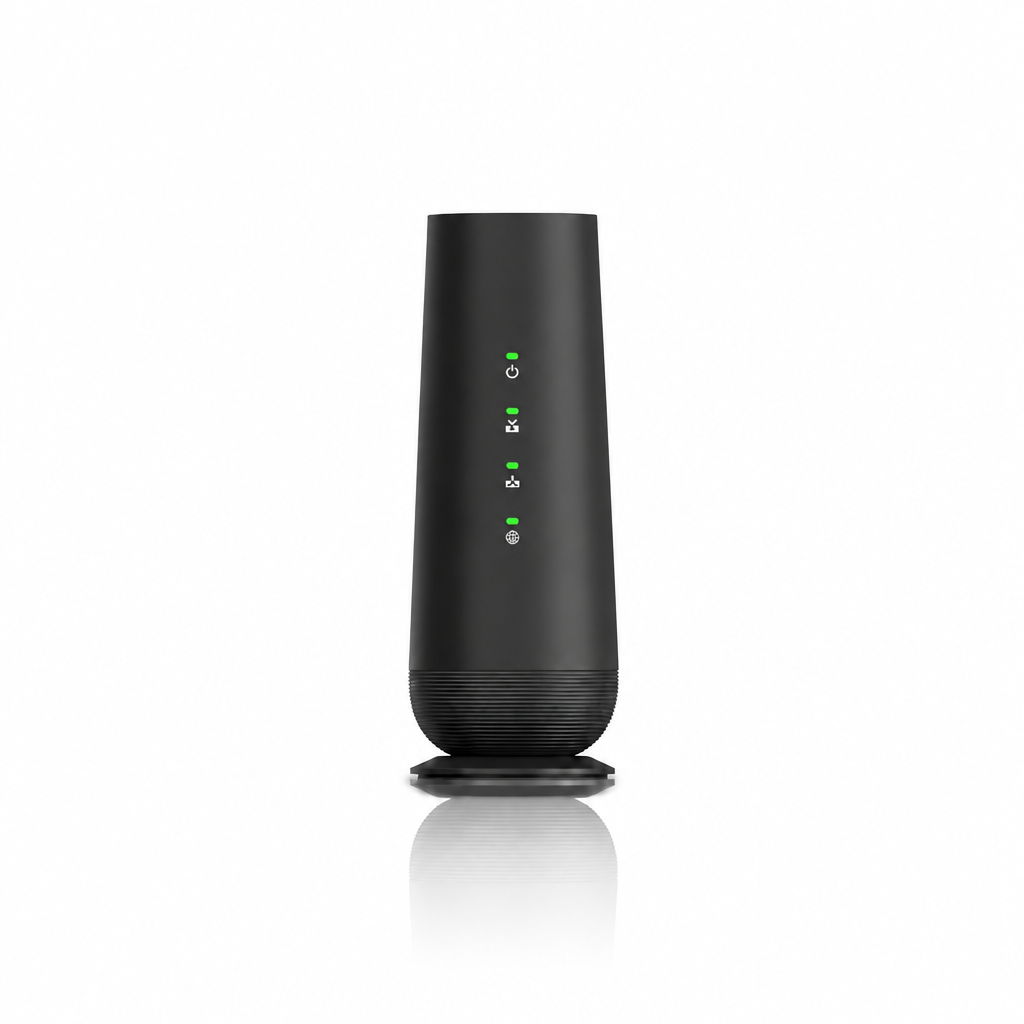

  • LED indicators for power, downstream, upstream, and online status
  • Wall-mountable or desktop placement
  • Supplied by NBN Co (not sold commercially)
  • Installation and activation managed by NBN technician

Product Descrioption :

Reliable Connection for NBN HFC Services

The NBN HFC CM3500 Network Termination Device is a crucial component for homes and businesses connected to the NBN via Hybrid Fibre Coaxial (HFC) technology. It serves as the official interface between the NBN network and your home internet router, ensuring stable and fast data transmission.

Seamless Integration with Your Setup

This device connects to the NBN through a coaxial cable and outputs internet via an Ethernet port, typically labelled UNI-D1. It’s compatible with most standard routers and is designed to deliver consistent broadband speeds as provided by your internet service provider.

Built for Performance and Stability

Equipped with LED status indicators, the CM3500 allows you to monitor signal strength, connectivity, and network status at a glance. It supports multiple Ethernet ports (activated by your ISP if required), making it scalable for future needs.

Easy Installation and Maintenance

The CM3500 is usually installed and activated by an NBN technician during your initial HFC setup. It is compact, reliable, and can be mounted on a wall or placed on a flat surface for convenience.

Important Notes

This is a network-locked device supplied by NBN Co and is not available for direct retail purchase. Replacement or installation is typically handled by your service provider or an authorised NBN technician

Specifications :

  • Model: CM3500
  • Device type: NBN HFC Network Termination Device (NTD)
  • Used for: Hybrid Fibre Coaxial (HFC) NBN connections
  • Coaxial input (F-type) connects to NBN wall socket
  • Ethernet output via UNI-D port (usually UNI-D1 active)
  • Supports up to 4 UNI-D ports (dependent on ISP provisioning)
  • 1 UNI-V port (for voice, typically inactive)
  • 10/100/1000 Mbps RJ45 Ethernet interface
  • LED indicators for Power, Downstream, Upstream, Online, and LAN
  • Powered by 12V DC power adapter (provided by NBN technician)
  • Wall-mountable or desktop design
  • Installation and activation handled by NBN technician
  • Not for direct retail sale - supplied by NBN Co
  • Typical dimensions: approx. 165 x 115 x 35 mm
  • Operating temperature: 0°C to 40°C
  • Humidity range: 10%–90% non-condensing
