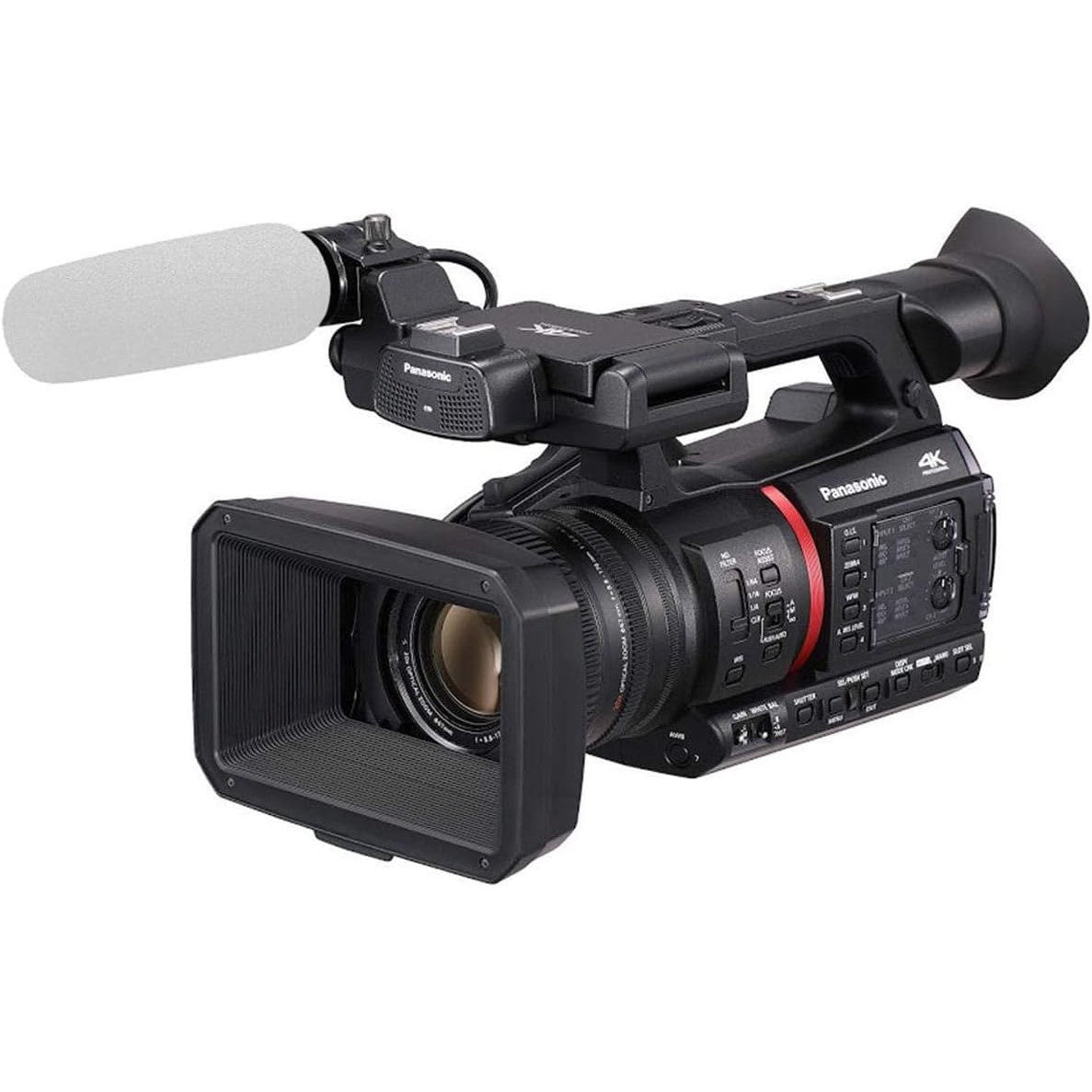

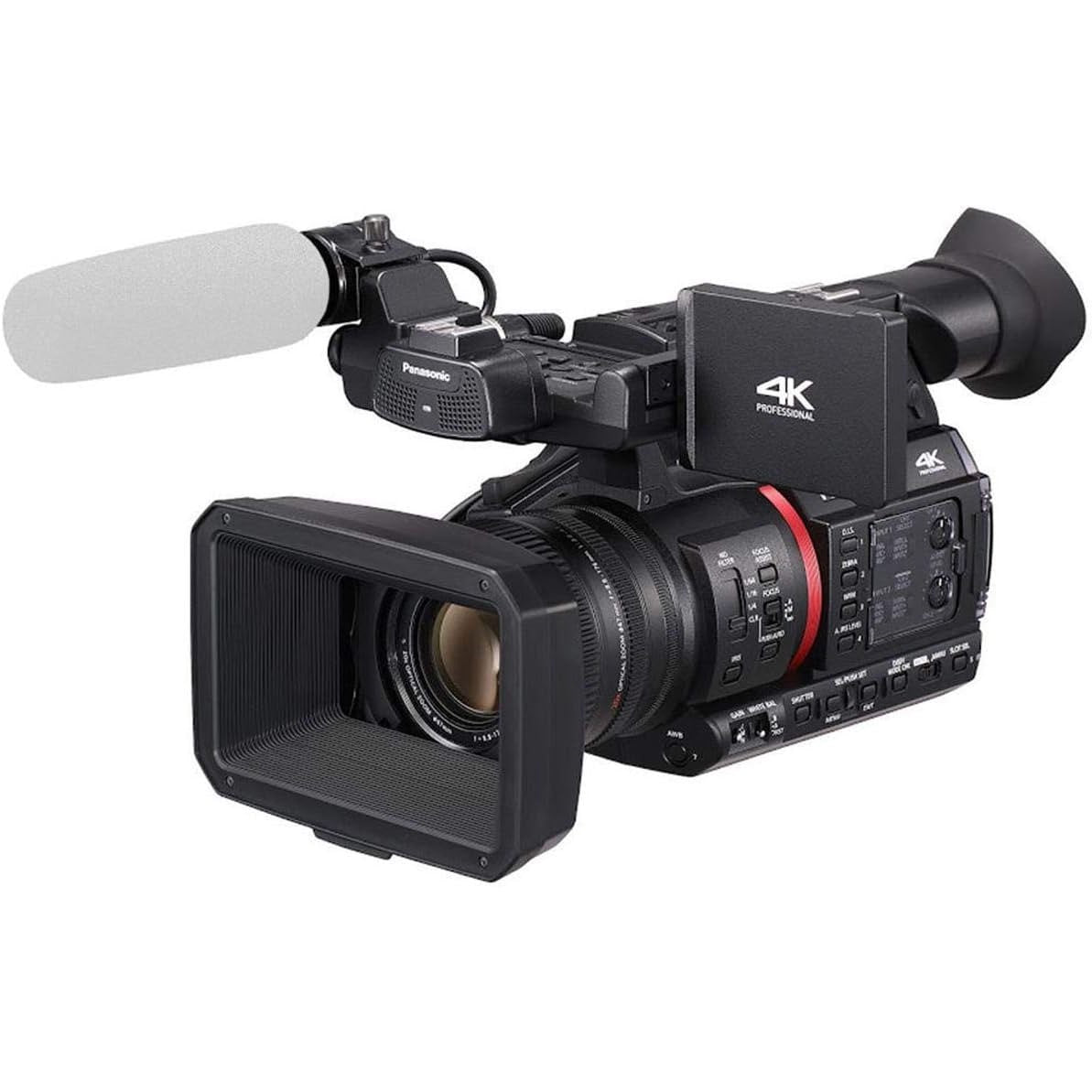

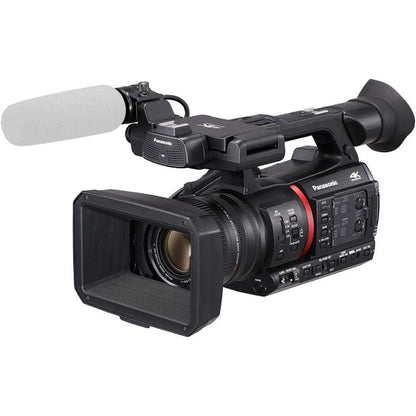

Panasonic AG-CX350 4K Camcorder
$5,045.00
$6,799.00
Panasonic AG-CX350 4K Camcorder
Supports 4K/60p/10-bit/HDR High Image Quality, Streaming, and IP (NDI | HX) Connection Capability, The High-End Handheld Camcorder for Production, Broadcasting, and Distribution
The Panasonic CX Series is a lineup of camcorders that supports the fusion of video, broadcasting, and communication. The AG-CX350 is a handheld camcorder that features 4K/UHD resolution, 10-bit depth HDR-compatible V-Log/HLG image quality, and various recording formats including broadcasting P2HD.
- * NDI is a new protocol developed by NewTek, Inc. that supports IP video production workflow. NDI is a registered trademark of NewTek, Inc. in the United States and other countries. In this instance, NDI |HX is used to indicate high-efficiency low bandwidth NDI |HX. Recording, streaming, and 4K output are not available when using NDI |HX mode.
To use this function, an activation keycode from NewTek is required.
FEATURES
-
High Shooting Quality
-
- Wide-Angle 24.5 mm Optical 20x Zoom, Plus i.Zoom
- High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor
- Intelligent AF and Face Detection/Tracking AE & AF
- Built-in 5-Axis Hybrid Image Stabilizer
- Manual Three Rings and Focus Assist
- HDR-Compliant V-Log/HLG (Hybrid Log-Gamma)
- Broadcast-Grade Picture Quality Adjustment Functions
- Simultaneous Display on High-Brightness, High-Definition LCD, and High-Resolution OLED EVF
-
Multi-Format, Multi-Codec Recording
-
- HEVC Codec for High-Image-Quality 10-bit 4K/60p Recording at Low Bit Rate
- P2 MXF File Formats Supported with Proxy and Shot Mark
- Clip Metadata Functions
- 10-bit Variable Frame Rate (VFR) without Cropping
- 24-bit PCM Audio 4-Channel Recording
- Freeze Frame (Still Image Capture)
- Double Memory Card Slots Improve Recording Reliability
-
Connect to Networks and Systems
-
- Streaming capabilities with 4K quality and SRT protocol support
- Linked with IoT Cloud Platform
- Easy IP Connection: NDI | HX Is Enabled by an Optional NDI |HX License Purchased from NewTek
WORKFLOW
Live Video Streaming System
- * Wired LAN and Wi-Fi networks cannot be operated simultaneously.
NDI | HX Multi-Camera Live Production System
Specification
- Wide-Angle 24.5 mm Optical 20x Zoom, Plus i.Zoom
- High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor
- Intelligent AF and Face Detection/Tracking AE & AF
- Built-in 5-Axis Hybrid Image Stabilizer
- Manual Three Rings and Focus Assist
- HDR-Compliant V-Log/HLG (Hybrid Log-Gamma)
- Broadcast-Grade Picture Quality Adjustment Functions
- Simultaneous Display on High-Brightness, High-Definition LCD, and High-Resolution OLED EVF
- Multi-Format, Multi-Codec Recording
- HEVC Codec for High-Image-Quality 10-bit 4K/60p Recording at Low Bit Rate
- P2 MXF File Formats Supported with Proxy and Shot Mark
- Clip Metadata Functions
- 10-bit Variable Frame Rate (VFR) without Cropping
- 24-bit PCM Audio 4-Channel Recording
- Freeze Frame (Still Image Capture)
- Double Memory Card Slots Improve Recording Reliability
- Connect to Networks and Systems
- Streaming capabilities with 4K quality and SRT protocol support
- Linked with IoT Cloud Platform
- Easy IP Connection: NDI| HX Is Enabled by an Optional NDI|HX License Purchased from NewTek
- Cabled/Wireless Remote Control Capability
- Professional System Features
- Low Power Consuming, Large-Capacity Battery, Quick Charge
- WORKFLOW
- Live Video Streaming System
- * Wired LAN and Wi-Fi networks cannot be operated simultaneously.
- NDI | HX Multi-Camera Live Production System
- Image Sensor: 1-Chip 1” MOS Sensor
- Sensor Resolution: 5170 × 2908 (15.00 MP)
- Sensitivity: f/12 at 2000 lux 89.9% Reflectance (59.94i/p). f/13 at 2000 lux 89.9% Reflectance (50i/p).
- Focal Length: 8.8 to 176mm
- 35mm Equivalent Focal Length: 24.5 to 490mm
- Optical Zoom Ratio: 20x
- Maximum Aperture: f/2.8 to 4.5
- Minimum Focusing Distance: Wide: 3.9” / 10.0 cm. Telephoto: 3.3’ / 1.0 m.
- Filter Size: 67 mm
- Control Rings: Focus. Zoom. Iris.
- Image Stabilization: Optical
- Focus Control: Autofocus. Manual Focus.
- Shutter Speed: 1/2 to 1/10,000 sec
- Shutter Angle: 3 to 360°
- Scan Rate Adjustable: Yes
- Built-In ND Filter: Mechanical Filter Wheel with Clear, 2 Stop ¼, 4 Stop (1/16), 6 Stop (1/64) ND Filters
- Built-In Microphone Type: Stereo
- Recording Media: 2 x SDXC/SDHC Card Slot
- Recording Modes: MOV 4:2:2 10-Bit: 3840 × 2160p at 23.98/25/29.97 fps (400 Mb/s). 3840 × 2160p at 23.98/25/29.97 fps (100 Mb/s). 1920 × 1080p at 50/59.94 fps (200 Mb/s). 1920 × 1080p at 23.98/25/29.97 fps (100 Mb/s). 1920 × 1080i at 50/59.94 fps (100 Mb/s). H.265 4:2:0 10-Bit: 3840 × 2160p at 50/59.94 fps (200 Mb/s). 3840 × 2160p at 23.98/25/29.97 fps (150 Mb/s).MOV 4:2:0 8-Bit: 3840 × 2160p at 50/59.94 fps (150 Mb/s) . 3840 × 2160p at 23.98/25/29.97 fps (100 Mb/s). 1920 × 1080p at 23.98/25/29.97 fps (50 Mb/s). 1920 × 1080i at 50/59.94 fps (50 Mb/s). AVCHD 4:2:0 8-Bit: 1920 × 1080p at 50/59.94 fps (25 Mb/s) . 1920 × 1080p at 23.98 fps (21 Mb/s) . 1920 × 1080i at 50/59.94 fps (21 Mb/s). 1920 × 1080i at 50/59.94 fps (17 Mb/s). 1280 × 720p at 50/59.94 fps (8 Mb/s). 720 × 576i at 50 fps (9 Mb/s) . 720 × 480i at 59.94 fps (9 Mb/s) . AVC-Intra/P2:AVC-Intra 4:2:2: 1920 × 1080p (200 Mb/s).AVC-LongG/P2: 1920 × 1080p (50 Mb/s) . 1920 × 1080p (25 Mb/s) . 1920 × 1080p (12 Mb/s) . 1280 × 720p (50 Mb/s) . 1280 × 720p (25 Mb/s) . 1280 × 720p (12 Mb/s) .
- Variable Frame Rates: UHD: 1 to 60 fps. 1080p: 1 to 120 fps.
- Audio Recording: MOV: 4-Channel 24-Bit 48 kHz LPCM Audio. AVCHD: 2-Channel 16-Bit 48 kHz.
- IP Streaming: Yes
- Video Connectors: 1 x BNC (3G-SDI) Output. 1 x HDMI Output. 1 × 1/8” (3.5 mm) TRRS A/V (Composite) Output.
- Audio Connectors: 2 × 3-Pin XLR Input. 1 × 1/8” / 3.5 mm Stereo Headphone Output.
- Other I/O: 1 x BNC Timecode Input/Output. 1 x RJ45 LAN Control, Monitor, Video. 1 x USB Type-A USB 2.0 Input/Output. 1 x USB Type-C USB 3.1 Gen 1. 1 × 2.5 mm LANC Control Input.
- Display Type: Articulating Touchscreen LCD
- Size: 3.2”
- Resolution: 1,620,000 Dot
- EVF Display Type: OLED
- Screen Size: .39”
- EVF Resolution: 1,770,000 Dots
- Battery Type: Panasonic AG-VBR Series
- Power Connectors: 1 x Barrel (12 VDC) Input
- Power Consumption: 17 W
- Operating Temperature: 32 to 104°F / 0 to 40°C
- Operating Humidity: 10 to 80%
- Accessory Mount: 2 x Cold Shoe Mount. 1 × 1/4”-20 Female.
- Tripod Mount: 1/4”-20 Female
- Dimensions: 7.09 × 6.81 × 12.24” / 180 × 173 × 311 mm (Without Protrusions
BRAND NEW
ONE YEAR WARRANTY
AUSTRALIAN SELLER
