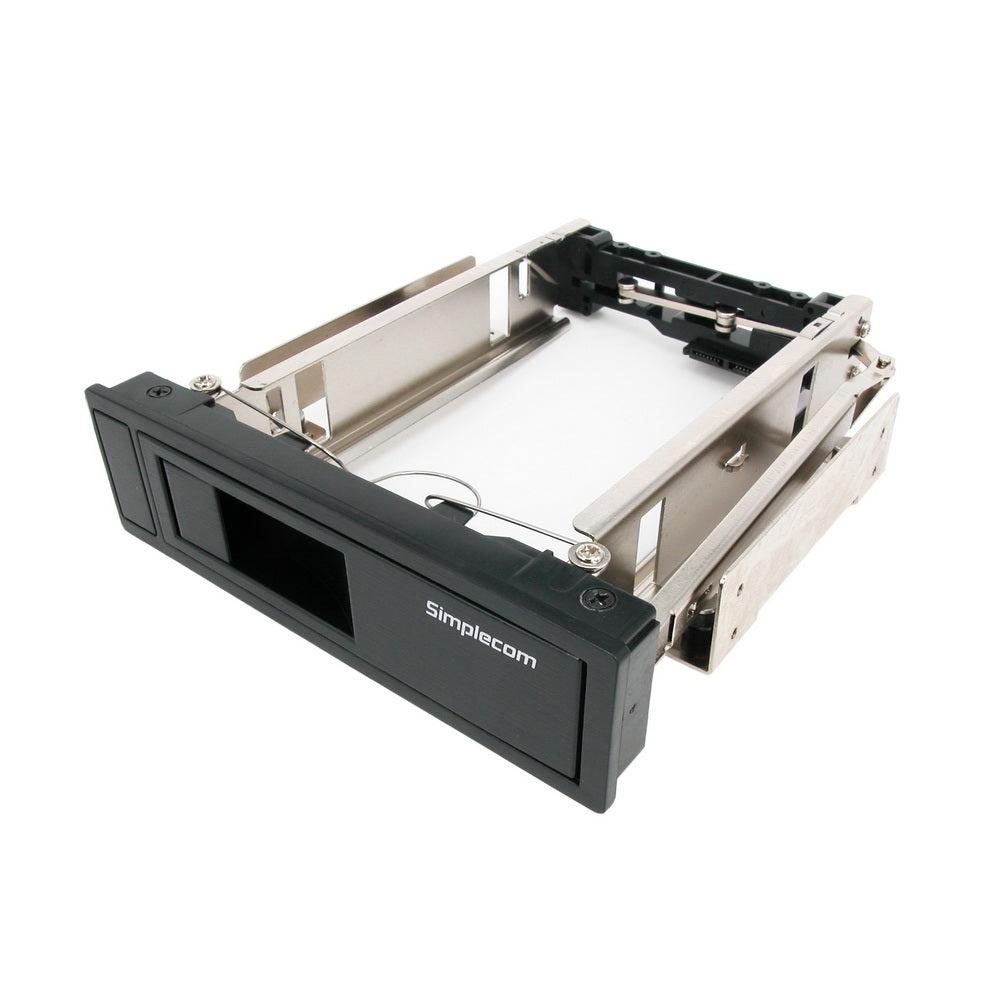

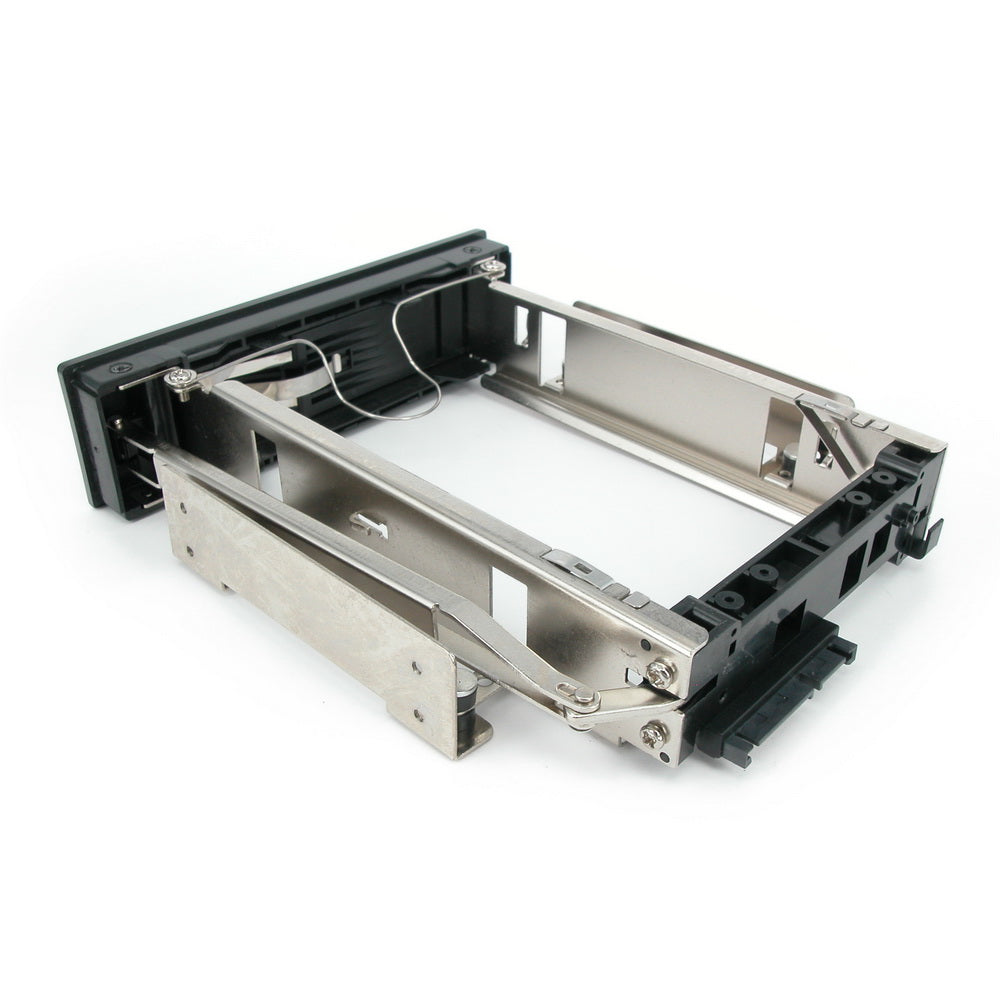

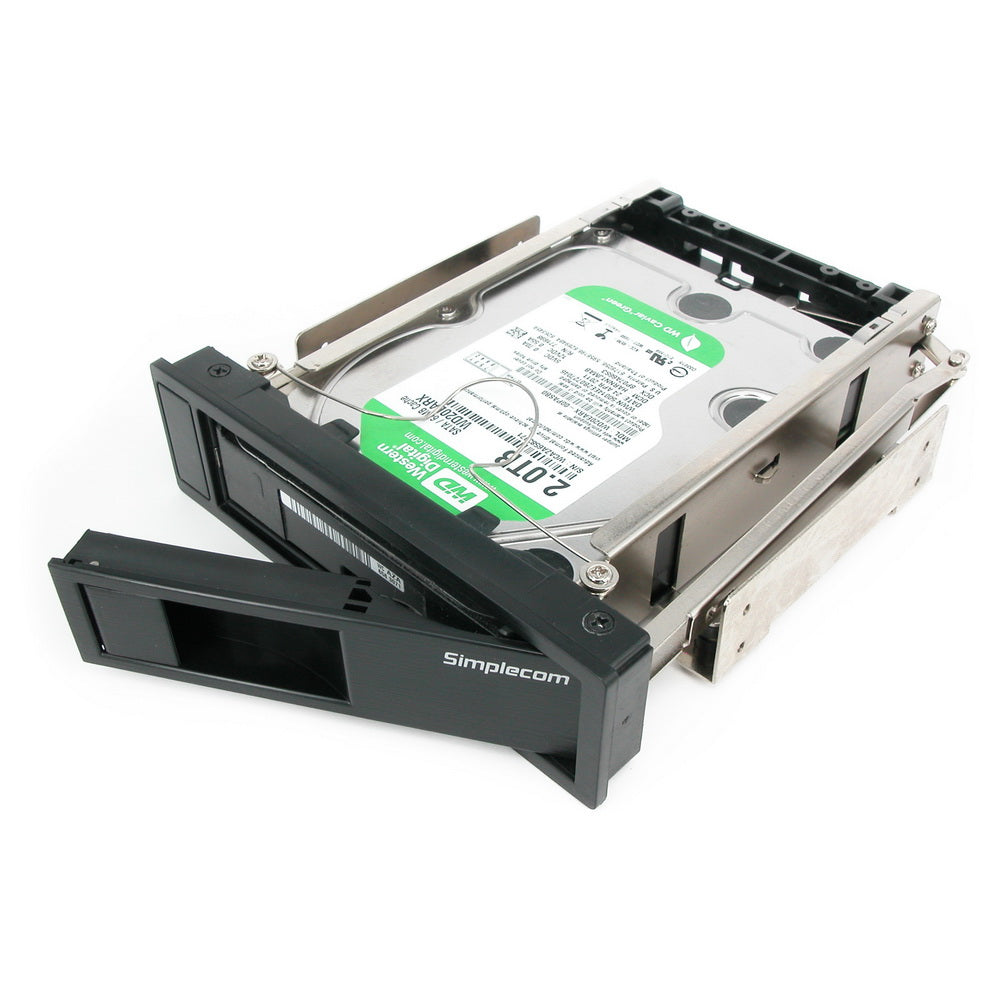

Simplecom SC314 Internal 5.25" Bay Mobile Rack 3.5" SATA HDD Backplane Enclosure
$34.00
$39.95
The SC314 SATA Mobile Rack lets you turn a standard 5.25 inch CD-ROM space into a 3.5 inch hard drive dock. It features a SATA interface to deliver the performance you expect from SATA, SATA II, and SATA III hard drives. Tool Free allow mounting or unmounting Hard Drive without Tools and Screws in seconds. Designed to provide a durable and reliable operation, the mobile rack features high quality solid metal construction.
With support for SATA3 up to 6Gbps, this mobile rack backplane is ideal for RAID installations to ensure maximum performance and versatility for enhanced storage applications. Trayless design with hot swapping that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
Feature
Tool Free allow to mount or unmount 3.5” Hard Drive without Tools and Screws in Seconds
Holds a 3.5" SATA drive in a front accessible 5.25" bay
Trayless design, drives are not mounted into separate trays/enclosures
Supports 3.5" form factor SATA hard drives
Plug-and-Play and Hot-Swap compatible (for AHCI mode)
Stylish brushed Front Panel Design
Ideal for environments where drives need to be replaced/removed regularly
Specifications
Form Factor: 5.25 inch Optical Drive Bay
Supported HDD Type:3.5 inch SATA I/II/III (1.5/3.0/6.0 Gbps)
Insertion Rating: 50000+ Cycles
Hot Swap Capability: Yes
Material Type: Metal and Plastic
Operating Temperature: 0°C to 50°C
Compatibility: OS independent; No software or drivers required
Dimension: 184 x 149 x 42 mm
Package Contents
1x Internal 5.25" Bay Mobile Rack for 3.5" HDD
1x Screw Kit
1x User Manual
