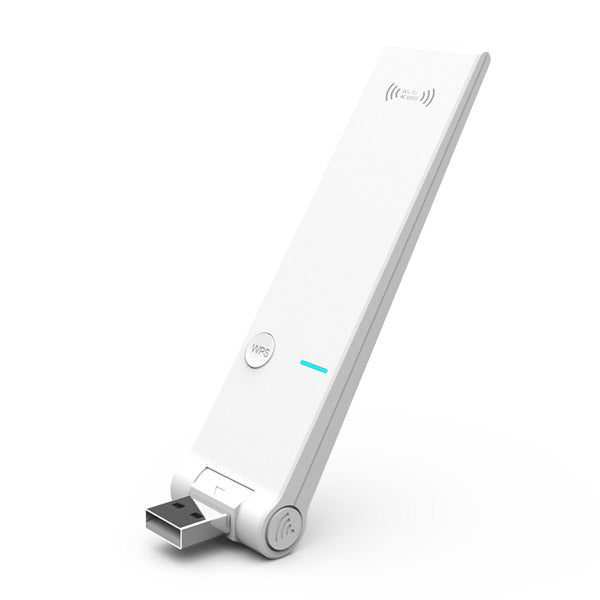

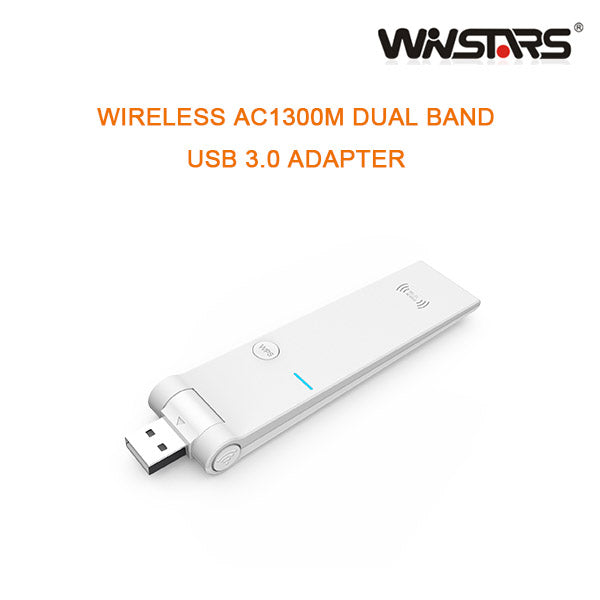

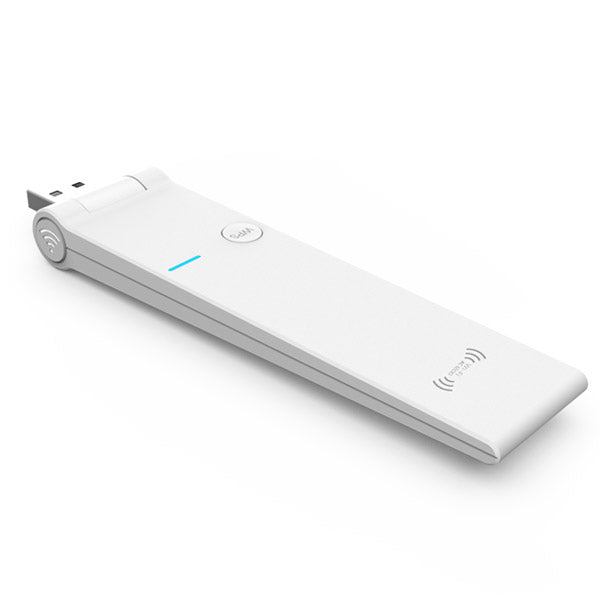

WINSTAR WIRELESS AC1300M DUAL BAND USB 3.0 ADAPTER
$54.00
$62.95
Features
1300 (867+400)Mbps wireless speed
Support 2.4GHz & 5GHz WLAN networks
Dual Band connections for lag-free HD video streaming and gaming
SuperSpeed USB 3.0 port, backward compatible to USB 2.0
Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
20MHz & 40MHz & 80MHz bandwidth transmission
OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAMmodulation
Supports Windows XP / Vista / 7 / 8 / 8.1/10, MAC
Specification
Hardware
Ports: USB 3.0
Button: WPS
LED: 1 X Link/ Active
Chipset:RTL8812AU
Flash: N/A
SDRAM: N/A
Power Supply: USB 5V
Power Plug: N/A
Power Consumption:
Rated Voltage/ requency /current:DC 5V about 500mA
Wireless
Standard:IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Modulation:
11ac\n: 16QAM, 64QAM 128QAM 256QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Speed:
802.11ac: up to 867Mbps
802.11n: up to 400Mbps
802.11a: up to 54Mbps
802.11g: 54 M
802.11b: 11 M
Frequency band:5GHz and 2.4GHz
Power:
802.11b: 22dBm ± 2 dBm 802.11g: 16dBm ± 2 dBm
802.11n: 15dBm ± 2 dBm 802.11ac: 14dBm ± 2 dBm
Distance:Outdoors 300m, Indoor 100m(According to the actual environment change)
Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC, WDS
Environmental
Operating Temperature:0ºC~40ºC
Storage Temperature:-10~70
Relative Humidity(Operational): 10%~90%,noncondensing
Relative Humidity(Storage):10%~90%,noncondensing
Software
Standard Version
RFC768 User Datagram Protocol(UDP)
RFC791 Internet Protocol(IP)
RFC792 Internet Control Message Protocol
RFC793 Transmission Control Protocol(TCP)
bandwidth 20MHz & 40MHz & 80MHz
Wireless Mode 11ac only, 11n only, 11g only & 11b only(option)
System Windows XP / Vista / 7 / 8 / 8.1/10, MAC
Product weight and dimensions
Item Weight: 0.25 KG
Product Dimensions: 98mm L x 28mm W x 10mm (L x W x H)
Package content
1 x Wireless-AC USB3.0 Aapter
1 x Quick Installation
1 x CD driver
