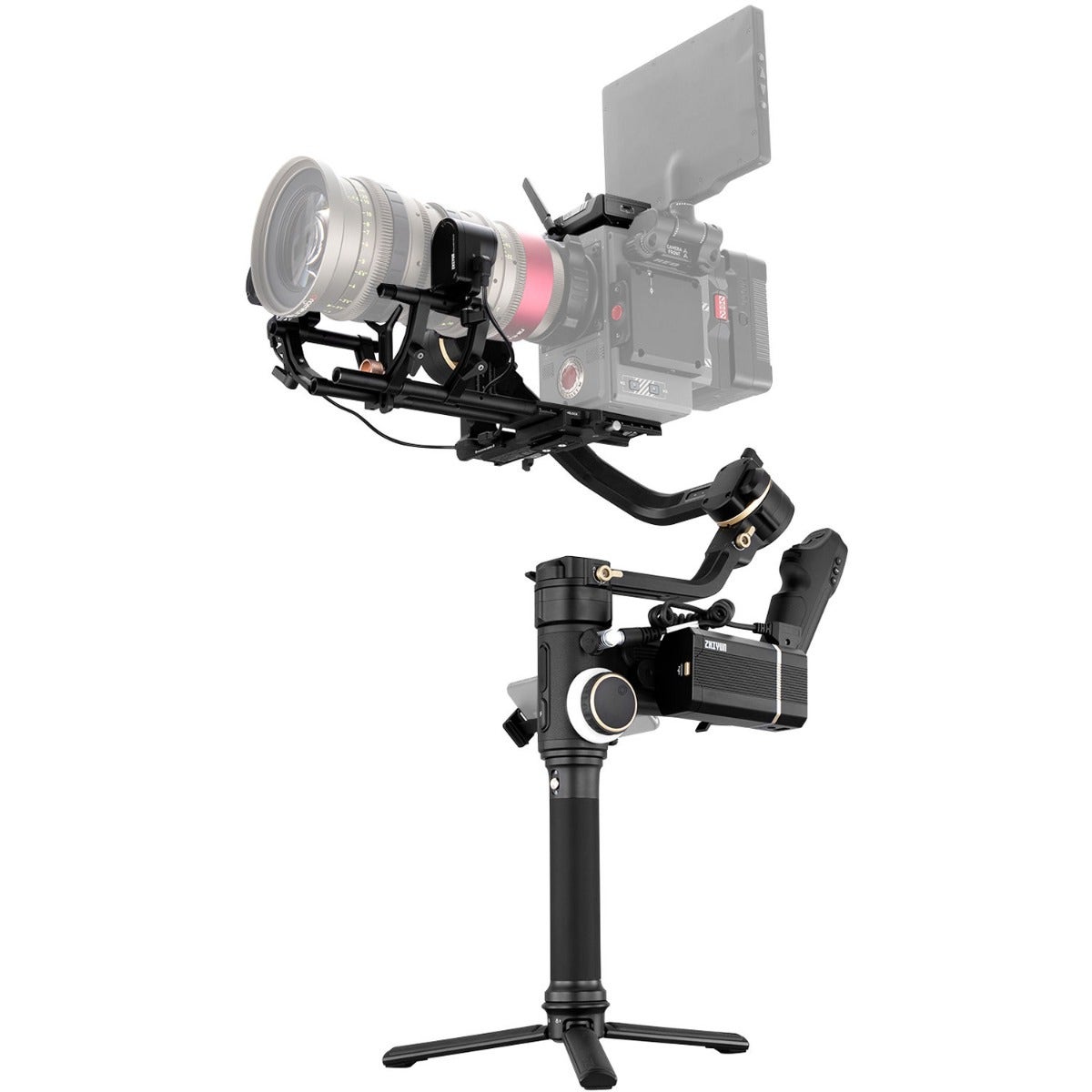

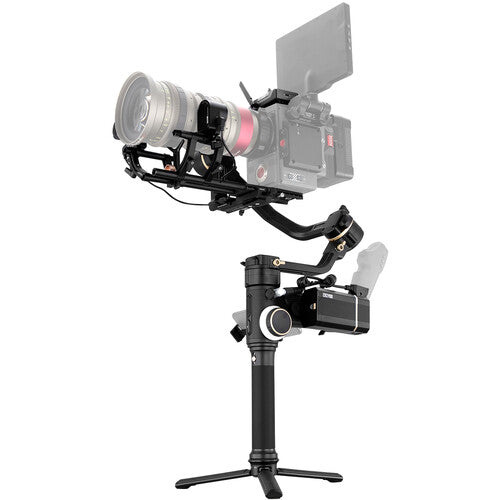

Zhiyun-Tech CRANE 3S PRO Handheld Stabilizer

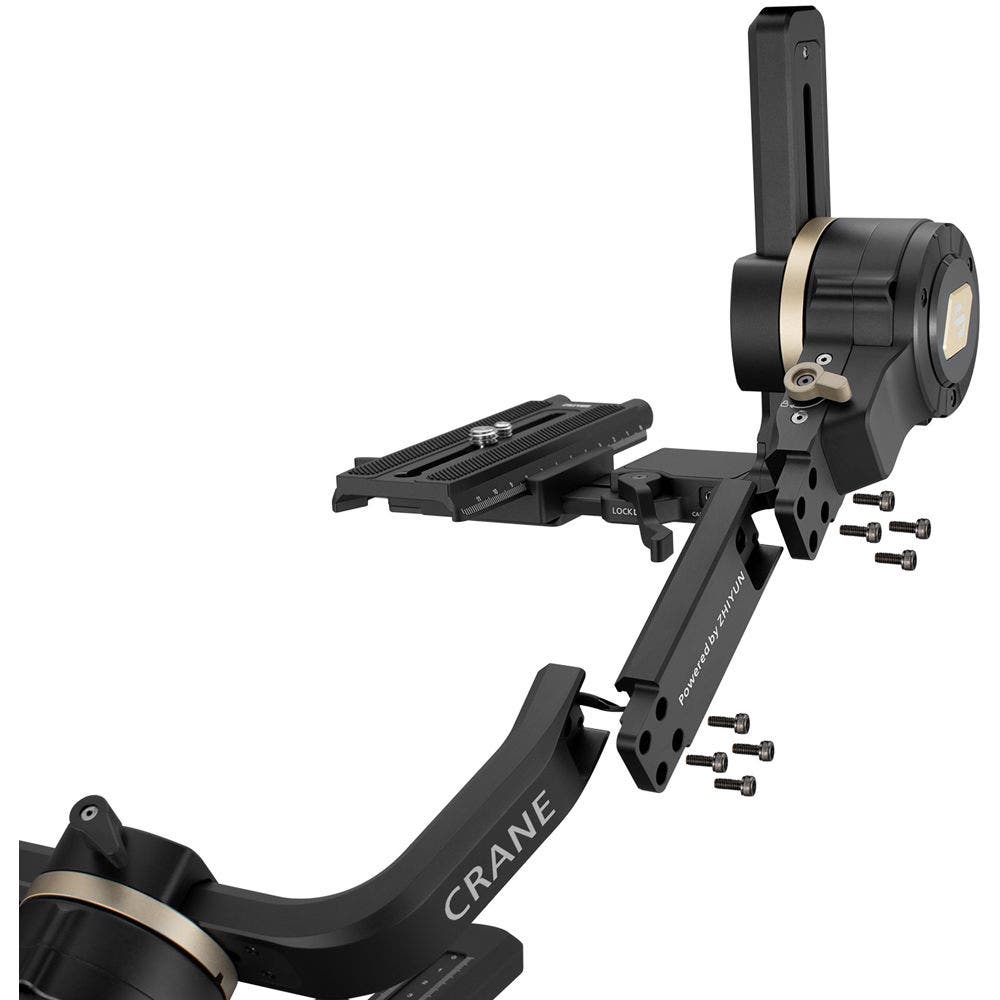

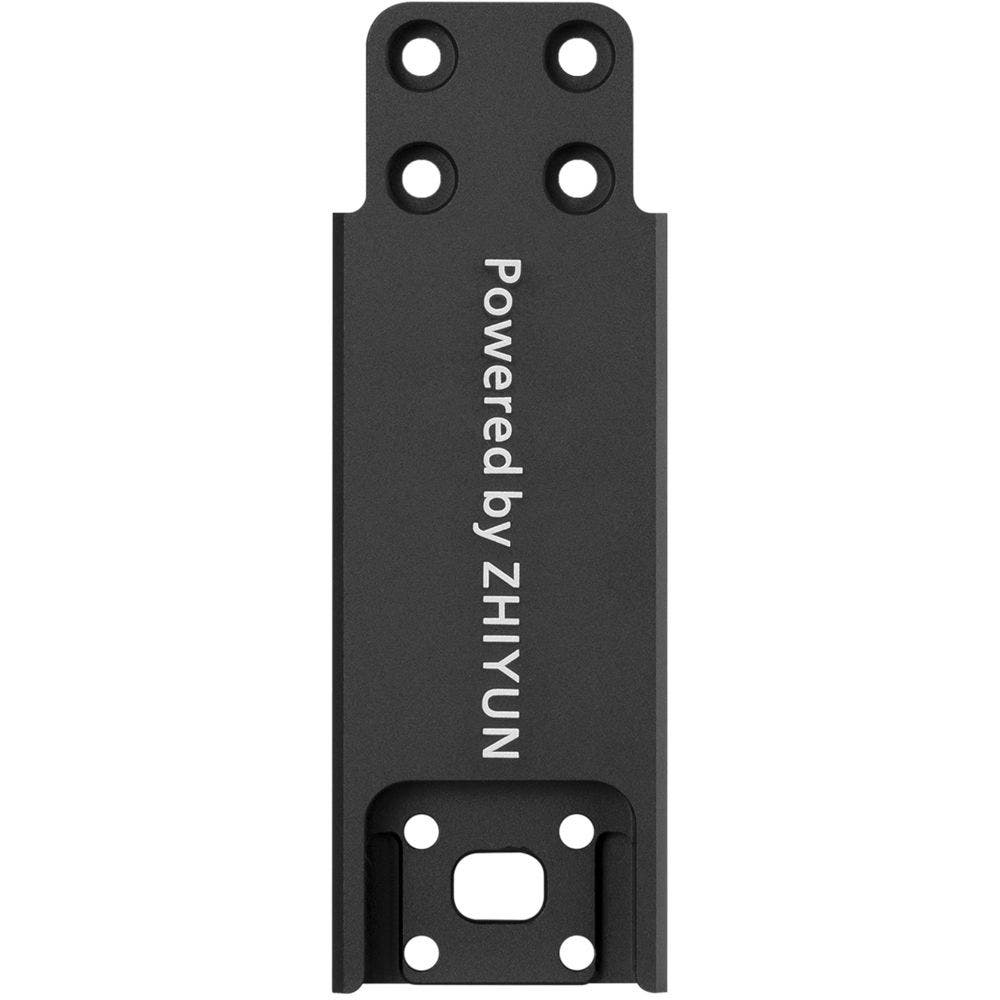

The Zhiyun-TechCRANE 3S PRO is a powerful redesign of previous Zhiyun gimbals with the addition of detachable handle options, a large 7 kg payload, an updated axis-locking system, external power input, and the ViaTouch 2.0 motion control system. The CRANE 3S PRO also features numerous advanced features such as wireless video transmission, professional zoom, focus controllers, and an external battery option. It can also accommodate a wide range of camera sizes by utilizing a separately available extension module to extend the horizontal arm, which is now positioned at a 55° angle. The gimbal can stabilize camera loads up to 7 kg.
The 3S PRO has two options for the detachable, angled handle. The included SmartSling handle offers an ergonomic handle with an integrated joystick and control buttons, and the optional EasySling handle provides a simple, comfortable handgrip without controls. The handle enables you to seamlessly switch to underslung mode, whether with one or two hands, and achieve creative shots such as 330° roll shots as you move closer toward a subject. All the controls you need are provided at your fingertips at the top of the main handle along with an OLED status screen. The free Zhiyun iOS/Android app provides many of the same control functions as well as special features such as panorama, focus time-lapse, motion time-lapse, long exposure time-lapse, camera settings, and more.
The detachable, angled handle allows for two-handed operation; the SmartSling handle with integrated controls is included, with the choice of the optional EasySling handle, a simplified handle
The ViaTouch 2.0 Control System consists of a variety of controls that come up on the Zhiyun app and allow for framing shots, controlling certain gimbal movements, and adjusting camera settings
Featuring more powerful motors and a different gimbal design from the CRANE 3 LAB, the CRANE 3S PRO achieves a greater load capacity of 14.3 lb
Specifications:
Gimbal
| Load Capacity | 14.3 lb / 6.49 kg |
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
| Rotation Range |
Controllable Range Yaw (Pan): 360° Pitch (Tilt): 246° (-91 to 155°) Roll: 295° (-57.5 to 237.5°) |
Connectivity
| Inputs/Outputs | 1 x USB-C |
| Wireless Protocol | Bluetooth 5.0 |
Battery
| Battery Type | 3 x 18650 |
| Battery Capacity | 2600 mAh |
| Battery Runtime | 12 Hours |
| Battery Chemistry | Lithium-Ion |
Power
| Operating Voltage | 9.8 to 11.1 VDC |
| Operating Current | 360 to 5400 mA |
Environmental
| Operating Temperature | 22 to 77°F / -10 to 45°C |
General
| Mounting | 9 x 1/4"-20 Female |
| Dimensions | 13.62 x 13.54 x 3.86" / 346 x 344 x 98 mm |
| Weight | 5.45 lb / 2.47 kg |
