Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array

-
+
$450.00

Zoom

Out of stock

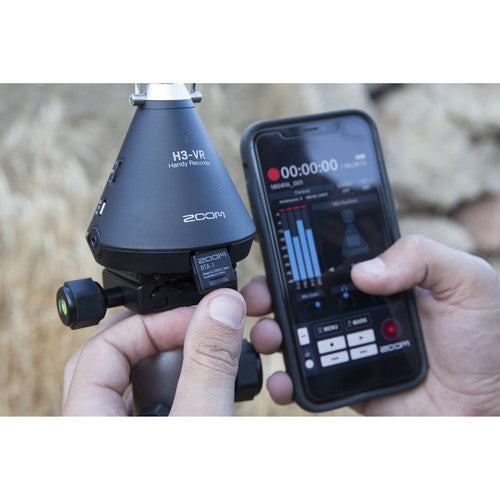

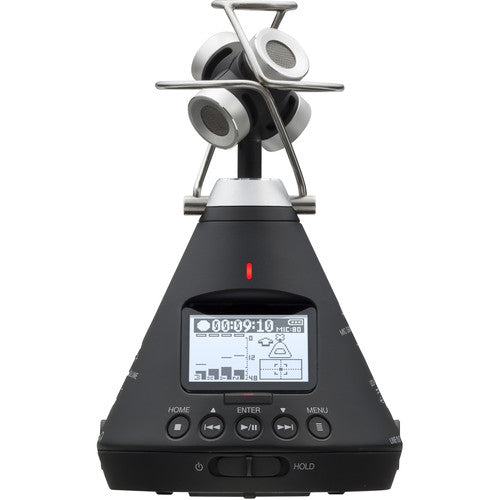

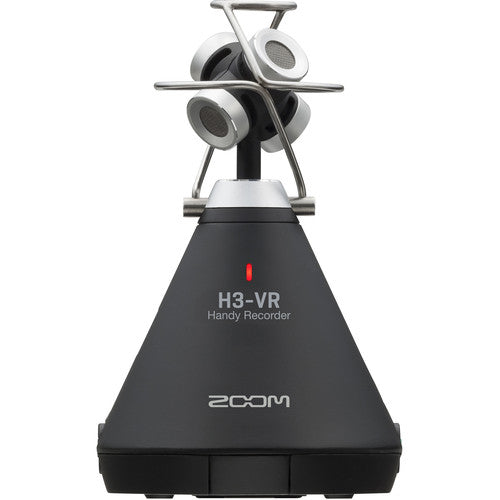

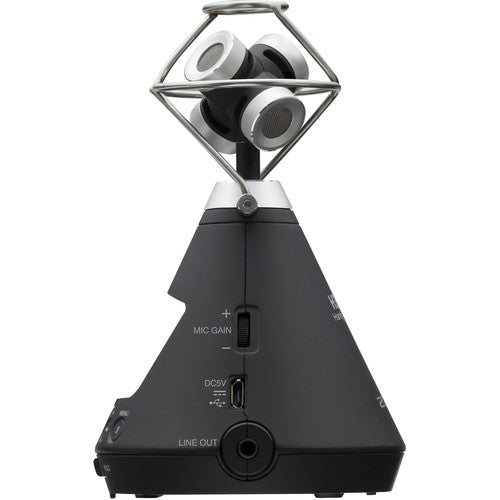

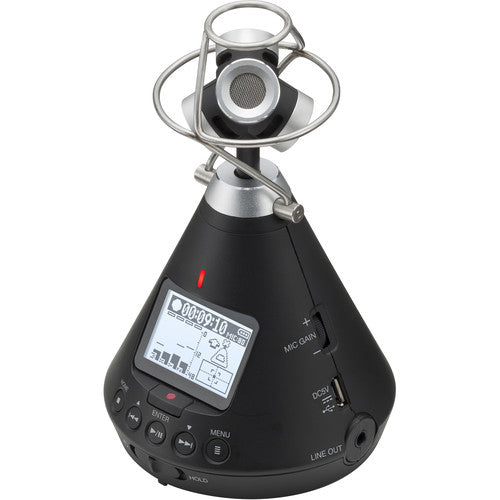

Zoom H3-VR Handy Audio Recorder with Built-In Ambisonics Mic Array

RECORDERS CAPTURE AUDIO H3-VR CAPTURES REALITY

Whether you’re a game developer, filmmaker, or musician, virtual reality is the undeniable future of content creation. While 360-video is exploding in popularity, the ability to easily create 360 audio has lagged behind…until now.

FITS ANYWHERE AND CAPTURES EVERYTHING.

The H3-VR’s compact, the conical design captures audio from multiple angles without getting in the way of the camera or the action.

6-AXIS MOTION SENSOR

Auto Mic Position and Level Detection make placing the H3-VR simple. Whether positioned upright, upside down, endfire, or endfire inverted, the H3-VR automatically calibrates so your audio and video are already aligned for the post.

UPGRADE YOUR GAME EXPERIENCE

The slam of dungeon doors, the growl of monsters, or the howl of the wind can make or break a player’s fantasy. With the ability to capture high-quality in-game audio, you can elevate your player’s experience to new levels.

MONITORING & PLAYBACK

Monitor your audio live in stereo binaural or use the H3-VR’s onboard Ambisonics Decoding to simulate your recorded 360-experience during playback

Specifications
Number of Tracks 4
Maximum Sampling Rate 96 kHz / 24-Bit
Microphone Built-In Cardioid Condenser 4-Mic Array
Built-In Speaker No
Display Monochrome LCD
Memory Card Support microSD, microSDHC, microSDXC (Up to 512 GB)

Recording

Audio File Formats Ambisonics A, Ambisonics B (FuMa/AmbiX), BWF, WAV, iXML
Sample Rates 44.1 / 48 / 96 kHz (Ambisonics)
44.1 / 48 / 96 kHz (Stereo)
44.1 / 48 kHz (Binaural)
Bit Depth 16 / 24-Bit
Timecode Support No
Clock Accuracy 0.5 ppm

Connectivity

Analog I/O 2 x 1/8" / 3.5 mm TRS Output
Host Connection 1 x Micro-USB (2.0)

Performance

Gain/Trim Range Mic Inputs:
+18 to +48 dB
Max Output Level Line Outputs:
-10 dBu
Headphone Output Power 20 mW per Channel into 32 Ohms
Microphone Max SPL 120 dB

Power

Power Options Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type 2 x AA
Approximate Battery Life Fuma 48 kHz/24-Bit:
11.5 Hours (Alkaline)
11.5 Hours (NiMH)
24 Hours (Lithium)
AC/DC Power Adapter 5 VDC at 1 A (Not Included)

Physical

Mounting Options 1/4"-20 Female
Dimensions 3 x 3.1 x 4.8" / 76 x 78 x 123 mm
Weight 4.2 oz / 120 g

Packaging Info

Package Weight 1.05 lb
Box Dimensions (LxWxH) 8.95 x 6.45 x 3.8"
