Zoom PodTrak P8 Portable Multitrack Podcast Recorder
$895.00
$1,459.00

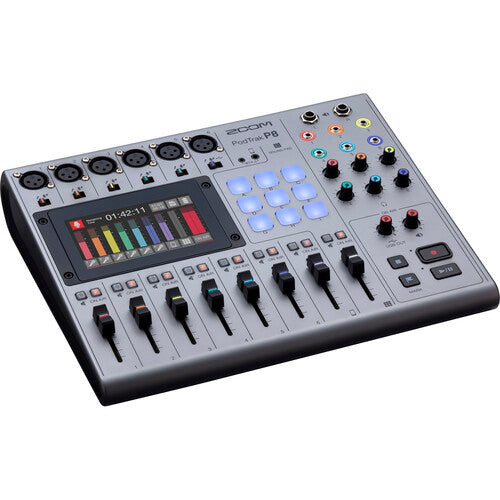

Zoom PodTrak P8 Portable Multitrack Podcast Recorder
PODCASTING SIMPLIFIED
The Zoom PodTrak P8 is easy to use and can handle the most ambitious podcasts. With all the functions you need to record, edit and mix, the PodTrak P8 is your complete podcast studio.
TOUCHSCREEN CONTROLS
The color touchscreen interface makes monitoring, adjusting, and onboard editing seamless. Everything you need is a touch away.
Mic Preamp Slider
The Mic Preamp Slider allows you to dial in the level or gain of each mic. Make adjustments until the signal is peaking in the “Good Range”. Peaking in the “Over Range” section can cause distortion in your sound.
Low Cut
The Low Cut reduces low-frequency noise that is present in almost any recording environment, whether it’s air conditioning, street sounds, vibrations, and other sources.
COLOR-CODED

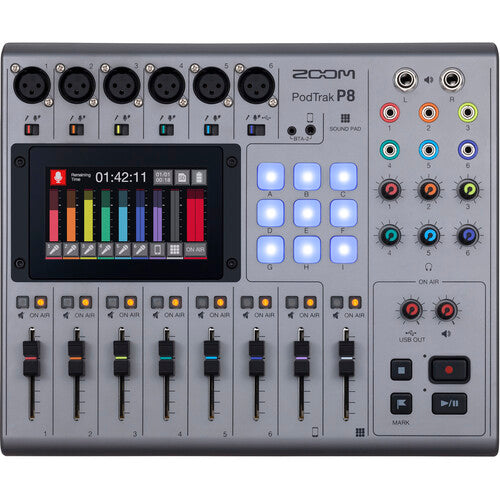

The P8’s color-coded inputs, outputs, and controls make on-the-fly adjustments a breeze, keeping you focused on the discussion.
WIRELESS CONNECTIVITY

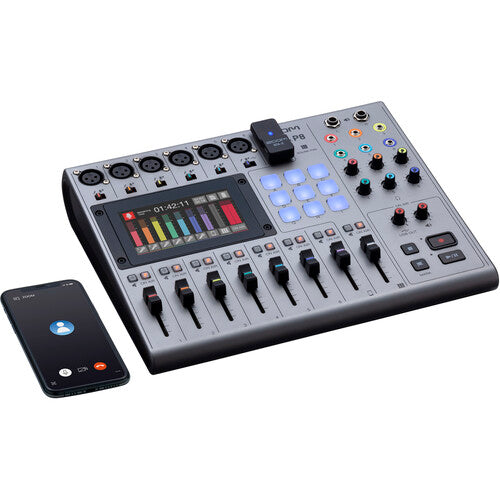

Use the optional Zoom BTA-2* Bluetooth Adapter to wirelessly connect your phone to record remote guests.
ADDED PRODUCTION VALUE
Make your podcast sound professional by triggering sound effects, intro music, jingles, pre-recorded interviews, and more, with nine multi-colored sound pads. Choose from 13 pre-loaded sounds or load your own. Create up to four banks of sound for a total of 36 sound clips at your fingertips.
Specifications
| Form Factor | Desktop |
| Display | Touchscreen |
| Channels of I/O |
Analog: 8 Input / 2 Output at 44.1 kHz |
| Maximum Sampling Rate | 44.1 kHz / 16-Bit |
| Number of Microphone Preamps | 6 Preamps |
| Input Level Adjustment | 6 x via Touchscreen |
Signal Processing
| Pad | None |
| Gain/Trim Range |
Mic Inputs: 0 dB to +70 dB |
| Solo/Mute | Mute per Input Channel |
Connectivity
| Analog Audio I/O |
6 x XLR 3-Pin Balanced Mic Input 6 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output 2 x 1/4" TRS Balanced Monitor Output 1 x 1/8" / 3.5 mm TRRS Unbalanced Aux In/Out |
| Phantom Power | 48 V, Selectable On/Off (Selectable on Individual Inputs) |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
Performance
| Frequency Response | 20 Hz to 20 kHz ±1 dB (at 44.1 kHz) |
| Maximum Input Level |
XLR Mic Inputs: +5 dBu for 0 dBFS 1/8" / 3.5 mm Aux Inputs: +2.5 dBu |
| Maximum Output Level |
Monitor Outputs: +5.5 dBu |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance |
XLR Mic Inputs: 3 Kilohms 1/8" / 3.5 mm Aux Inputs: 3 Kilohms 1/4" Monitor Outputs: 320 Ohms 1/8" / 3.5 mm Headphone Outputs: 27 Ohms |
| EIN | -124 dBu (150-Ohm Source, +70 dB Gain) |
Digital Audio
| Sample Rates | 44.1 kHz |
| Bit Depths | 16-Bit |
Audio Storage & Playback
| Memory Card Slot | 1 x SDXC |
Compatibility
| OS Compatibility | macOS Windows iOS *As of November 2021: Check with the manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Required Hardware | Available USB 2.0 Port USB Cable (Not Included) |
Power
| Power Requirements | AC/DC Power Adapter (Included), Battery, or USB Bus Power |
| AC/DC Power Adapter | 5 VDC at 1 A |
| Power Consumption | 5 W |

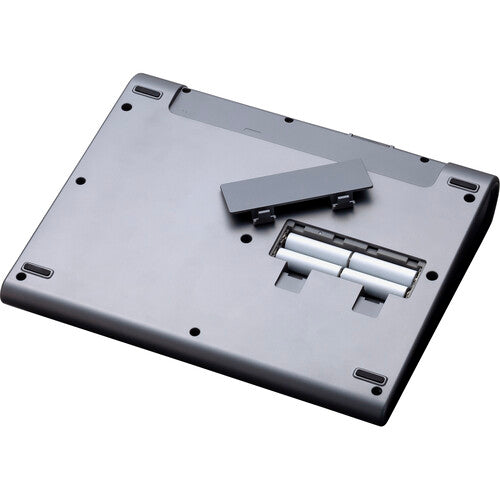

| Battery Type | 4 x AA |
| Approximate Battery Life | 2 Hours (AA Alkaline, Phantom Off, Recording, with Headphones) 3.5 Hours (AA NiMH, Phantom Off, Recording, with Headphones) 6.5 Hours (AA Lithium, Phantom Off, Recording, with Headphones) |
Physical
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 11.6 x 9.8 x 2.4" / 29.5 x 24.8 x 6.1 cm |
| Weight | 3.1 lb / 1.4 kg |
Packaging Info
| Package Weight | 4.595 lb |
| Box Dimensions (LxWxH) | 14.8 x 11.2 x 3.3" |
