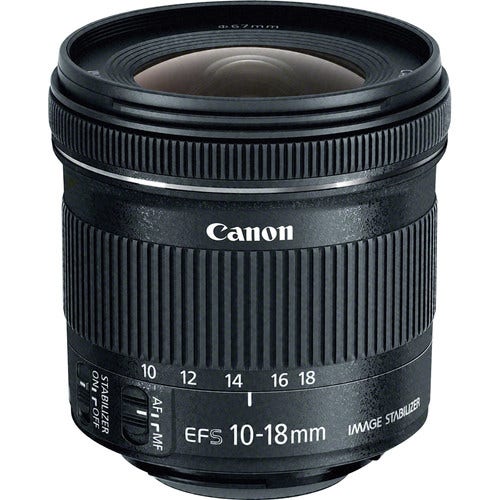

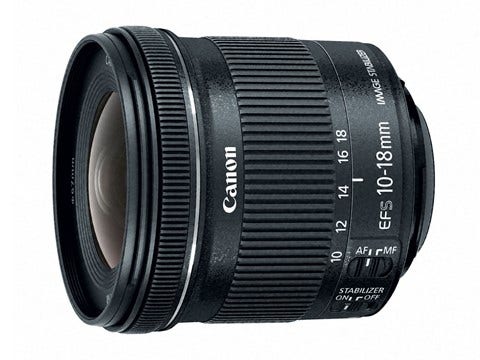

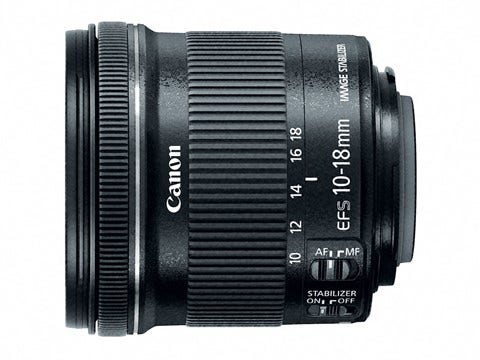

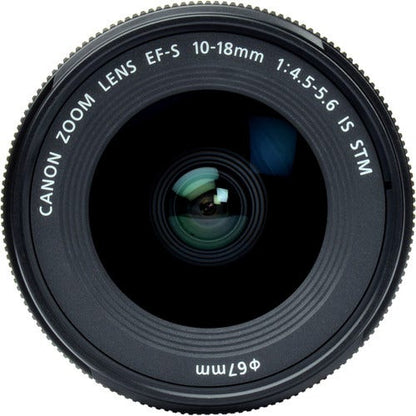

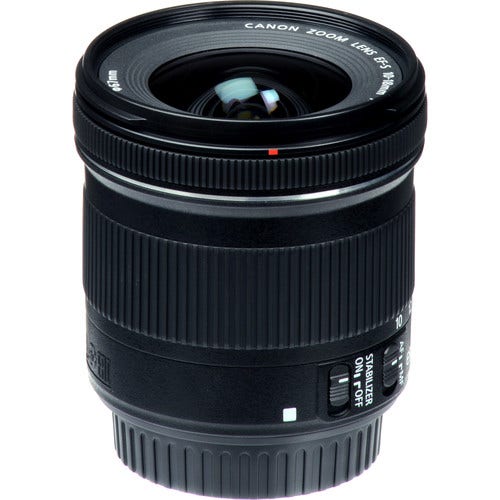

Canon EF S 10 18mm F4.5 5.6 IS STM Lens
The Canon EF S 10 18mm F4.5 5.6 IS STM is a wide angle zoom lens designed for Canon EOS cameras using the EF S mount and APS C format. It provides a 10 to 18mm focal length range and a 35mm equivalent focal length range of approximately 16 to 28.8mm.
Wide angle zoom range
The lens covers focal lengths from 10mm to 18mm. The angle of view ranges from approximately 107°30' to 74°20'.
APS C format
The lens is designed specifically for Canon APS C cameras with an EF S mount. It is not a full frame EF lens.
Optical construction
The lens contains 14 elements arranged in 11 groups. The optical design includes one UD element, one aspherical element and one large diameter element.
Image stabilization
The lens features an integrated optical image stabilization system. Stabilization functionality is available when supported by the connected compatible camera.
STM autofocus
An STM stepping motor provides autofocus operation. The focusing system is designed for smooth and quiet operation and supports autofocus with compatible Canon cameras.
Manual focus control
Full time manual focus operation is supported when used with compatible camera bodies and settings.
Seven blade diaphragm
The lens uses a seven blade rounded diaphragm.
Compact design
The lens has a compact construction with a diameter of approximately 74.6mm and a length of approximately 72mm. It weighs approximately 240g.
Lens specifications
| Specification | Details |
|---|---|
| Focal length | 10 to 18mm |
| 35mm equivalent focal length | 16 to 28.8mm |
| Lens type | Zoom lens |
| Maximum aperture | F4.5 to F5.6 |
| Minimum aperture | F22 to F29 |
| Format | APS C |
| Lens mount | Canon EF S |
| Angle of view | 107°30' to 74°20' |
| Minimum focus distance | 22cm |
| Maximum magnification | 0.15x |
| Image stabilization | Yes |
| Autofocus | Yes |
| Focus motor | STM stepping motor |
| Optical construction | 14 elements in 11 groups |
| Diaphragm blades | 7 rounded |
| Filter size | 67mm |
| Weight | Approx. 240g |
| Dimensions | Approx. 74.6 x 72mm |
Compatibility
The Canon EF S 10 18mm F4.5 5.6 IS STM is designed for Canon EOS cameras that support EF S lenses and APS C format.
Important note
Available autofocus, image stabilization and manual focus functions may vary depending on the connected camera body and its settings.
