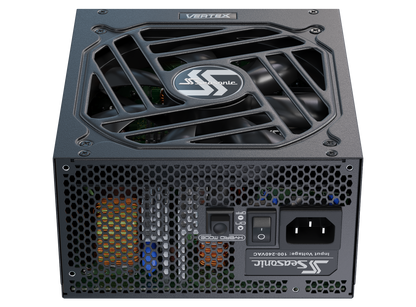

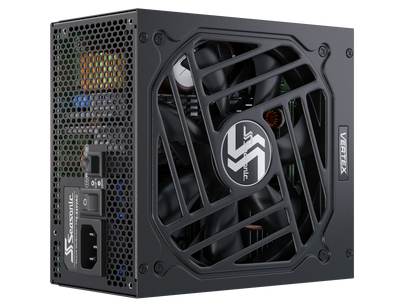

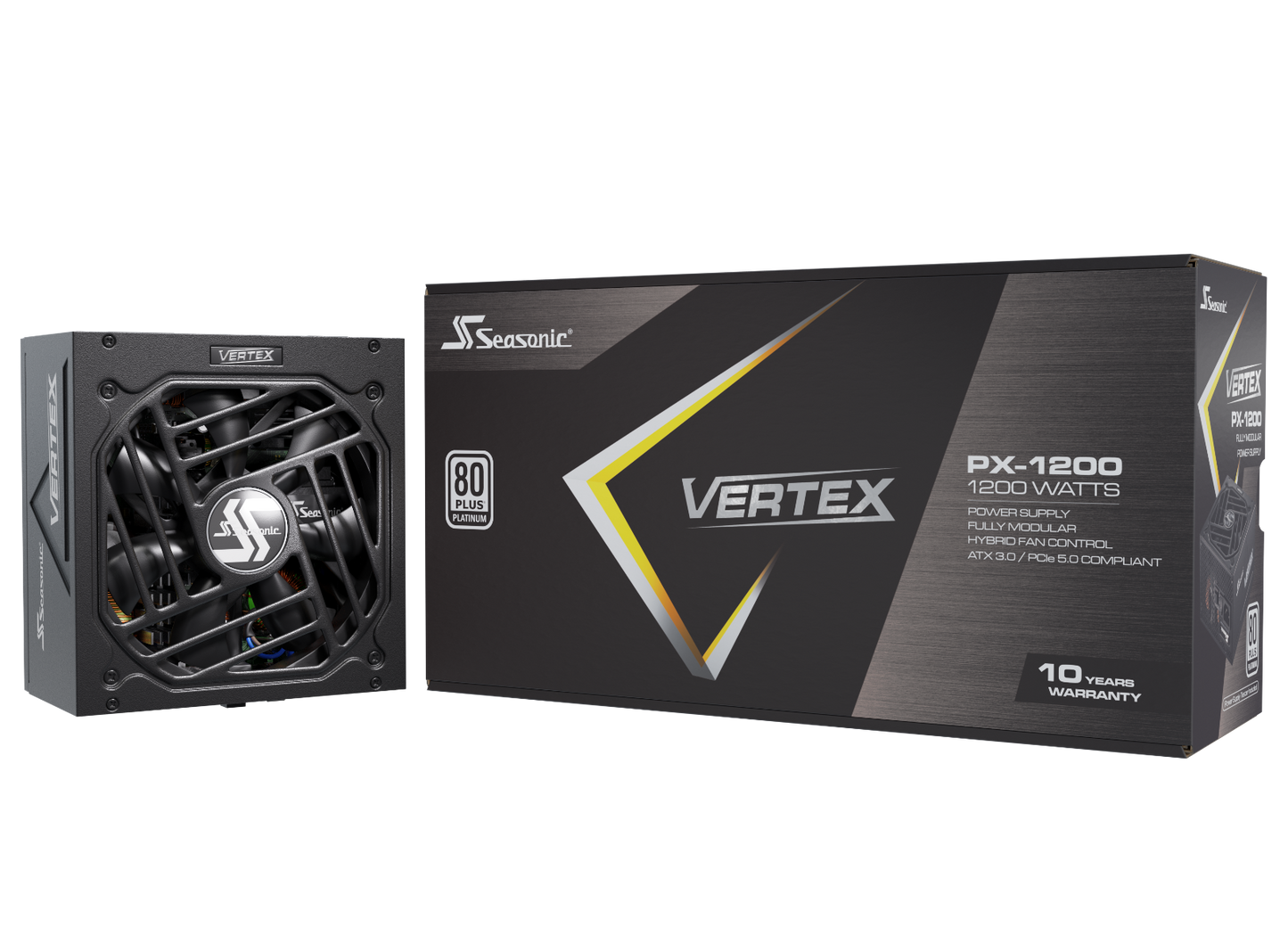

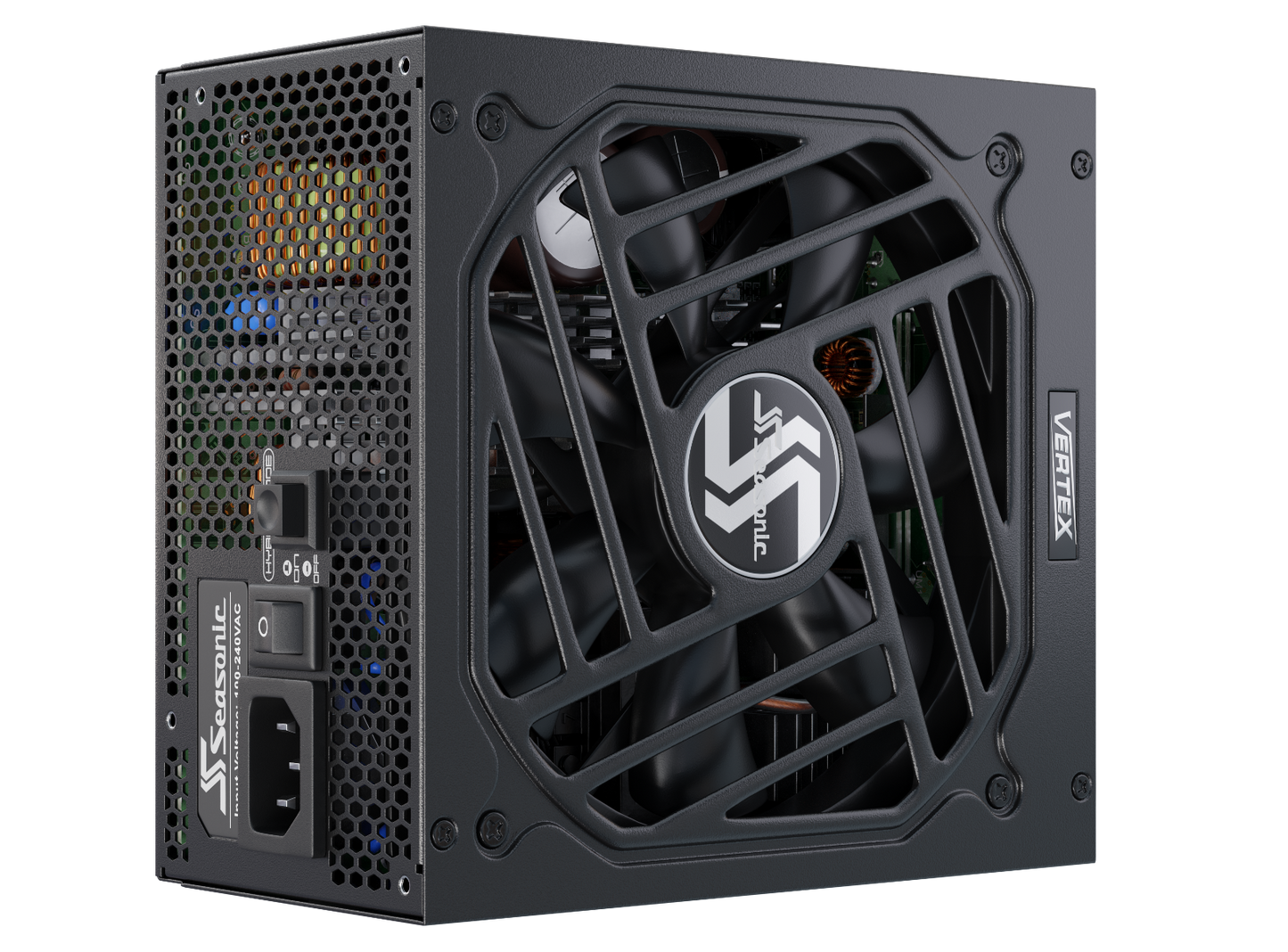

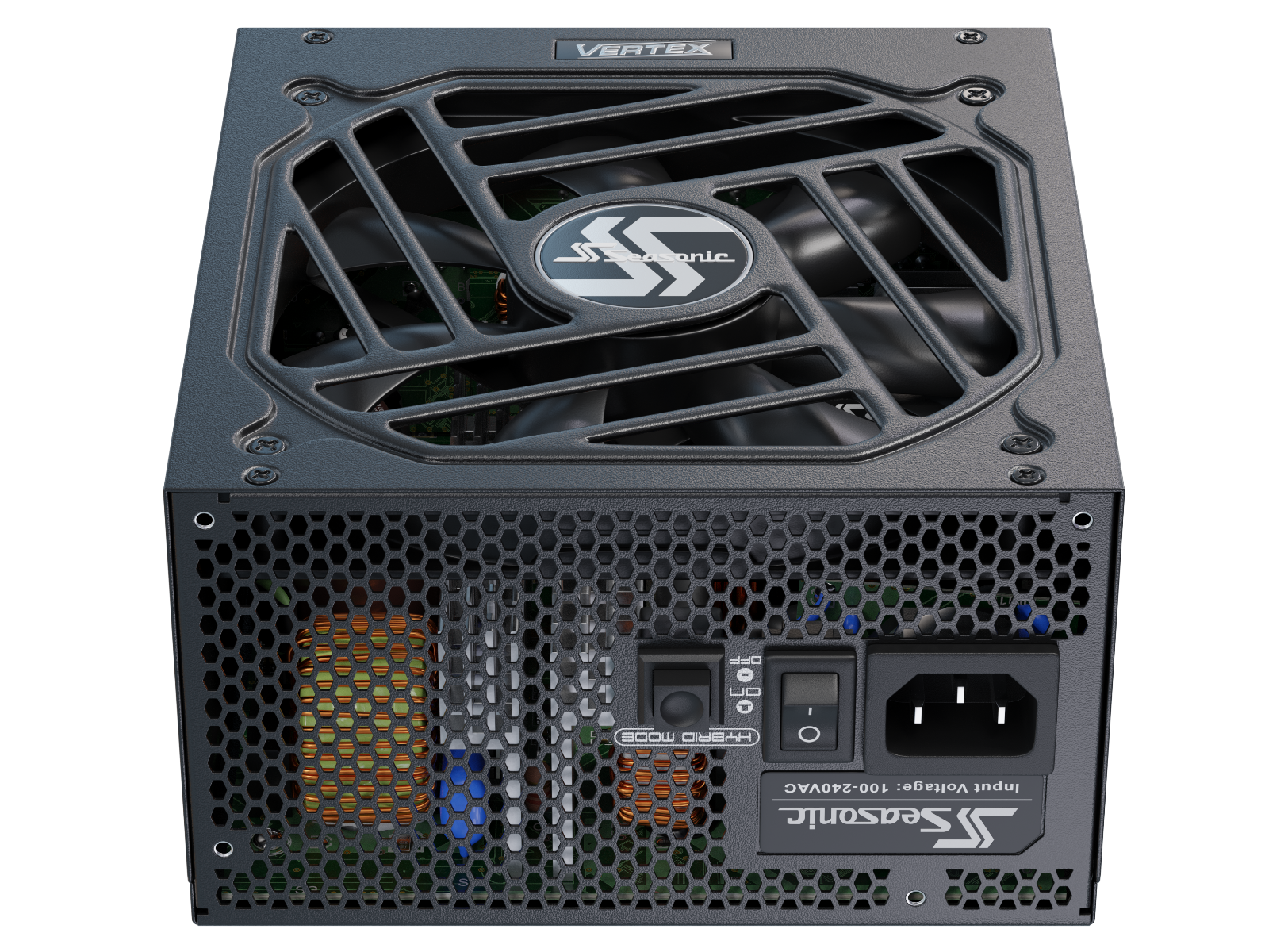

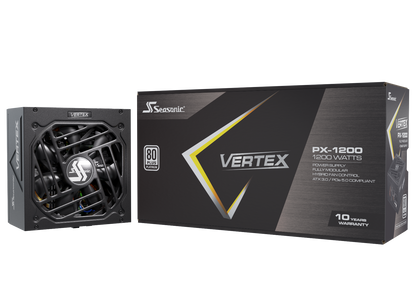

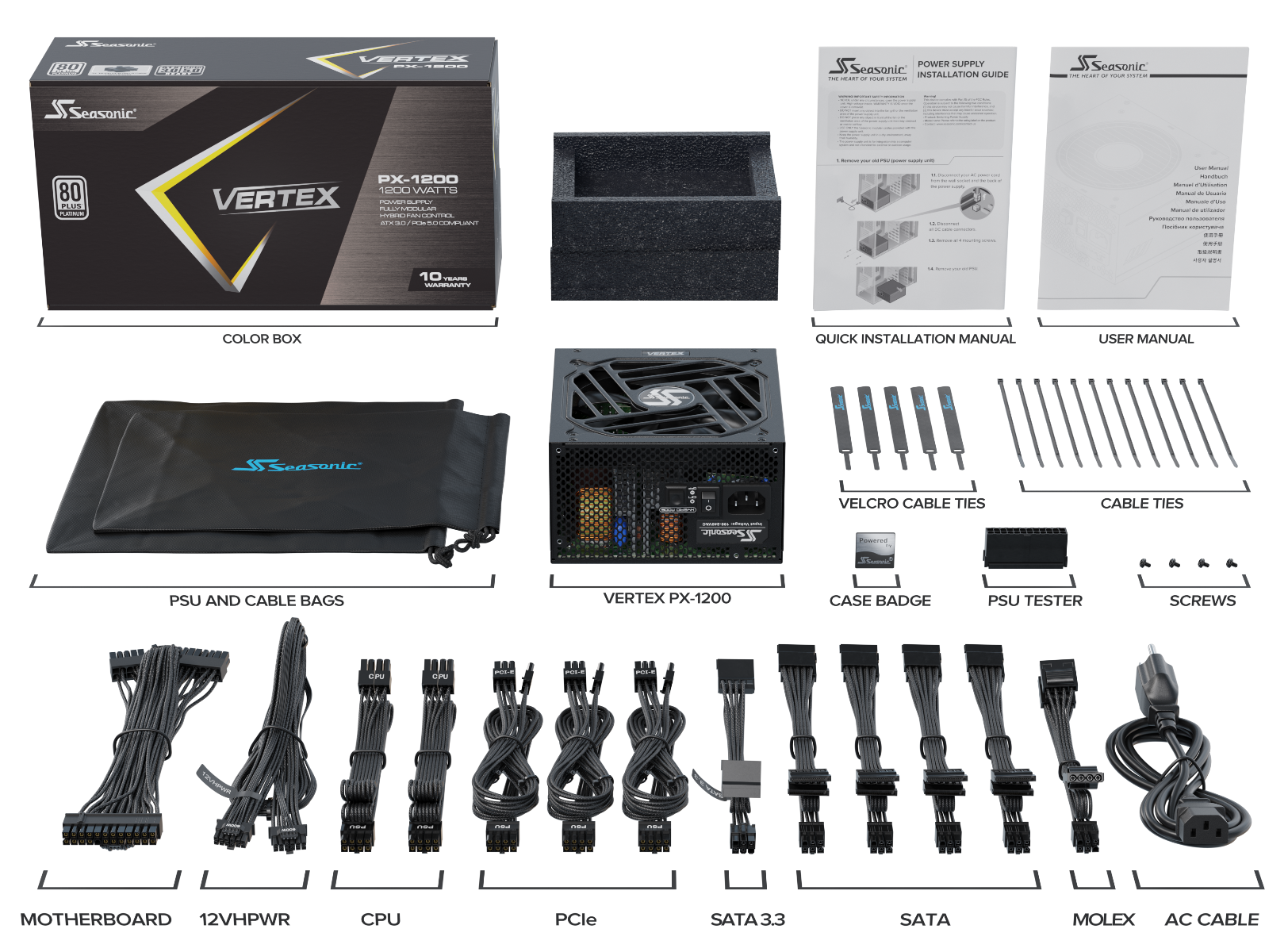

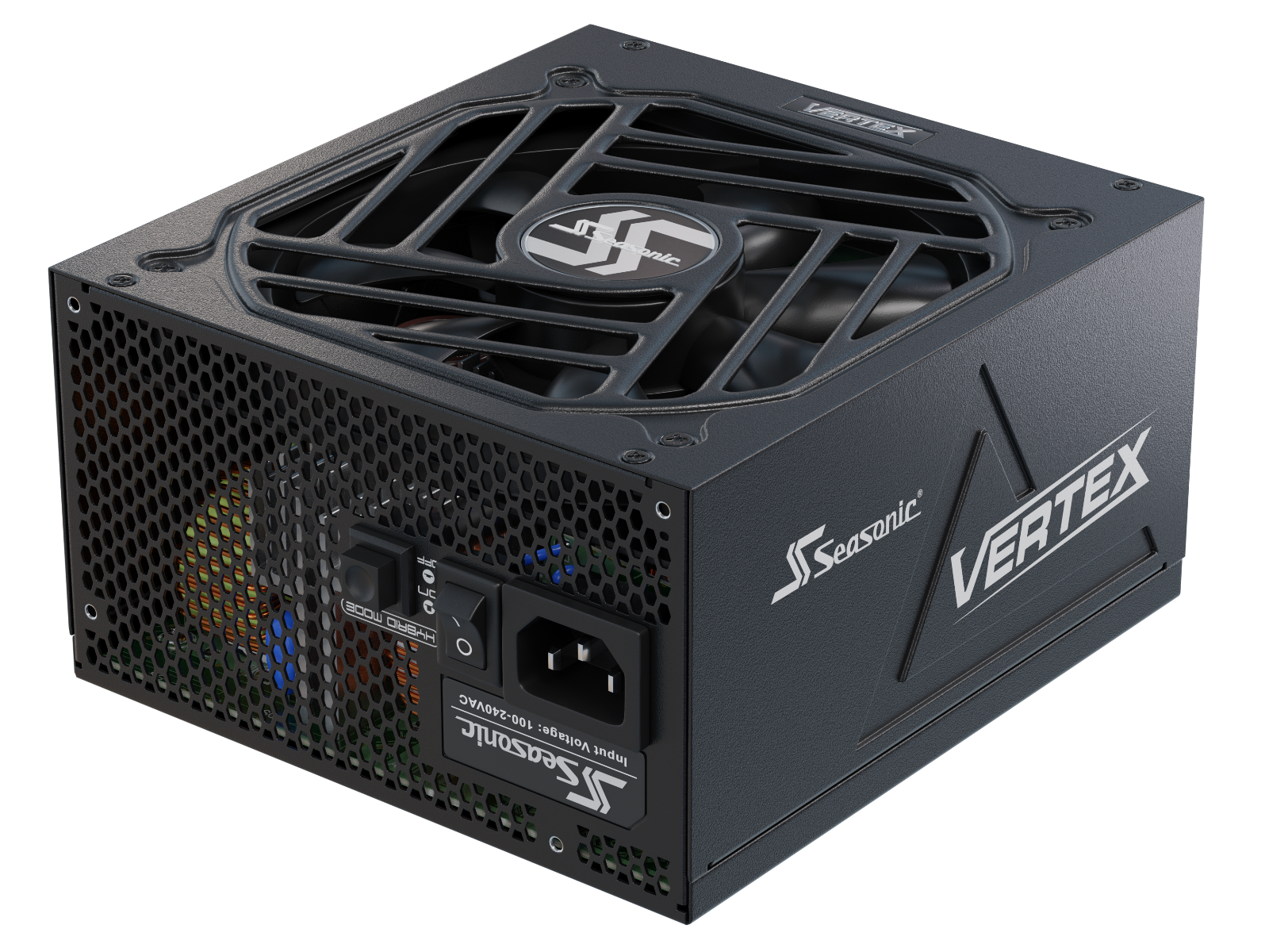

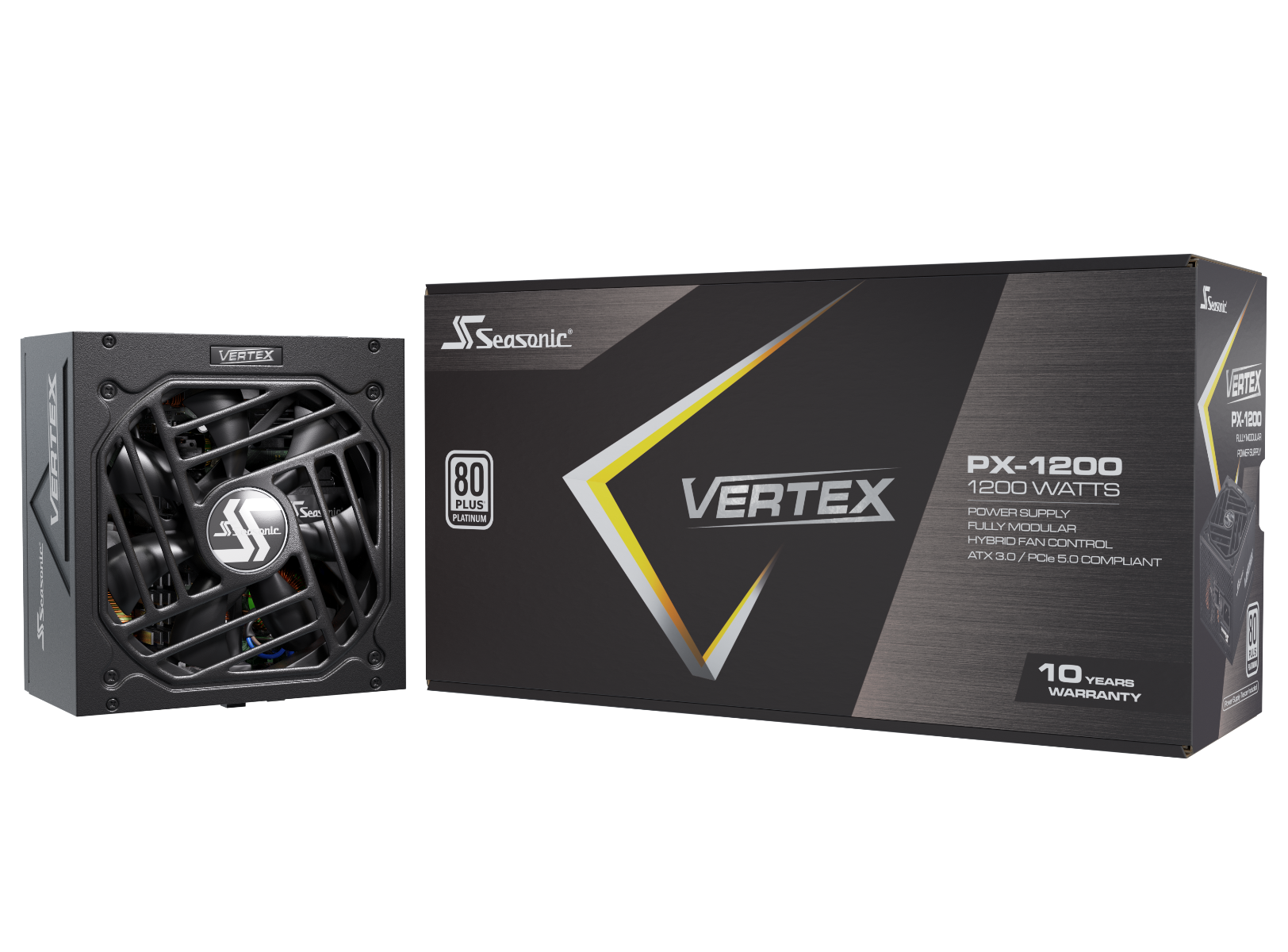

Seasonic VERTEX 1200W (PX-1200) Platinum Fully Modular PSU ATX 3.0

-
+
$621.00

Tristar Online

49 In Stock

FEATURE SUMMARY

  • Super-High Efficiency, 80 PLUS® Platinum Certified
  • Fully Modular
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
  • Top-Quality 135 mm Fluid Dynamic Bearing Fan
  • Premium Hybrid Fan Control
  • Tight Voltage Regulation (12V, 5V and 3.3V) [± 3%]
  • Gold Plated High Current Terminal (MB, CPU and PCIe)


  • Technical Specifications
    80PLUS® Platinum
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12V
    Dimensions 160 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 135 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

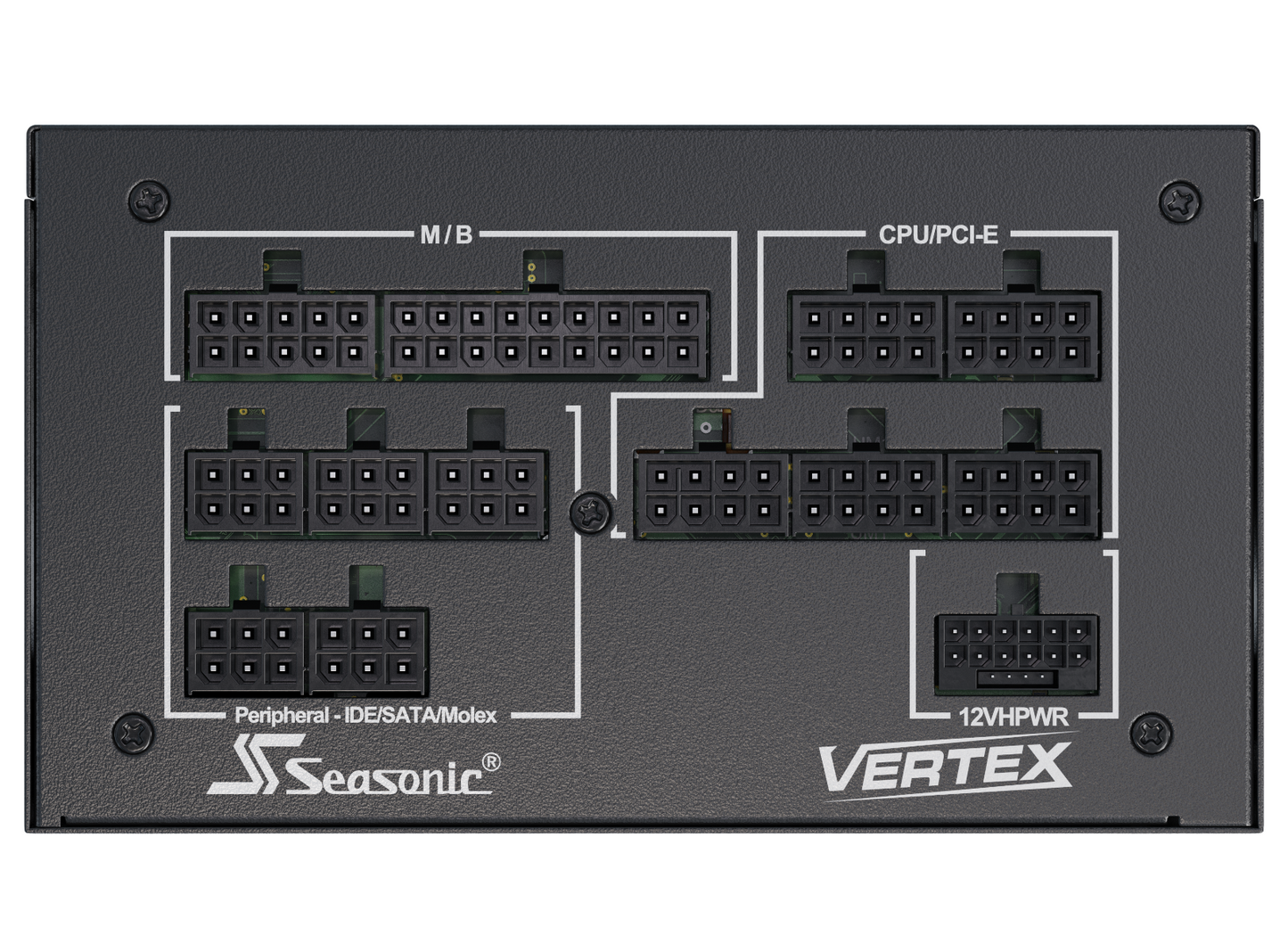

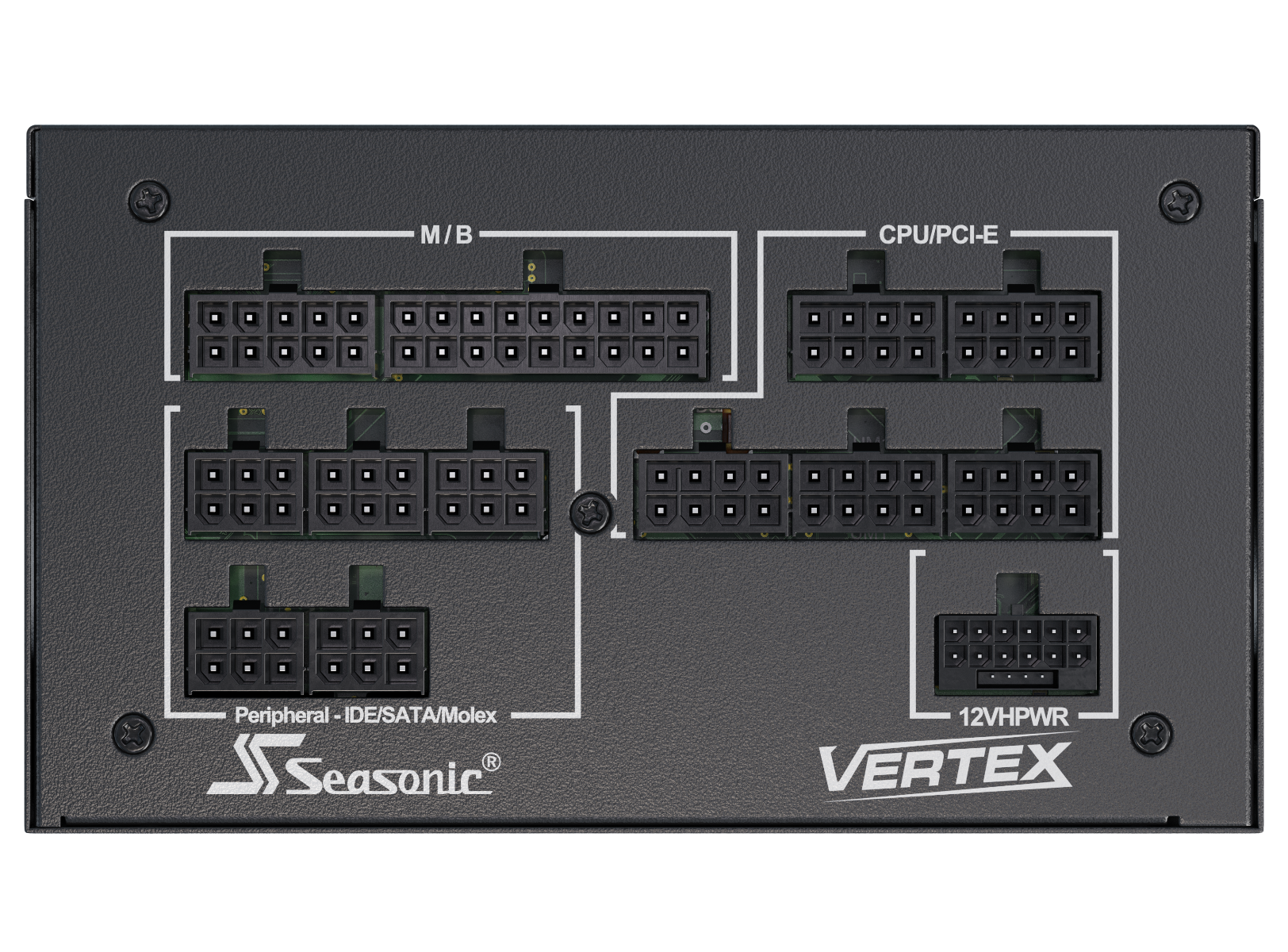

    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 150,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 10 Years

    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 15 - 7.5 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 25 A 25 A 100 A 0.3 A 3 A
    125 W 1200 W 3.6 W 15 W
    Total Continuous Power 1200 W
