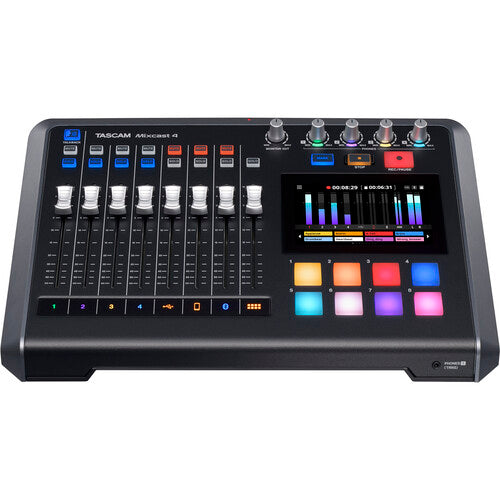

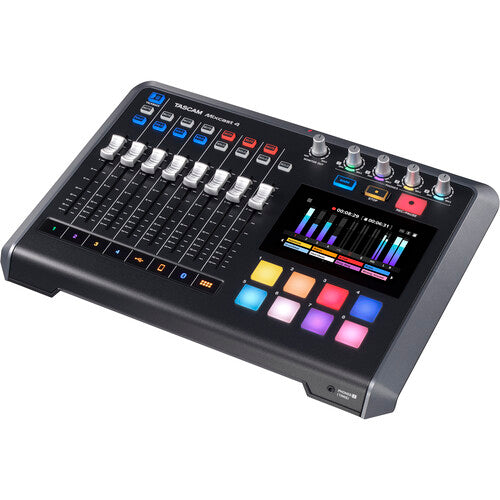

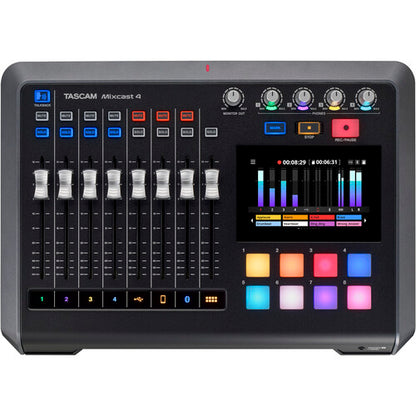

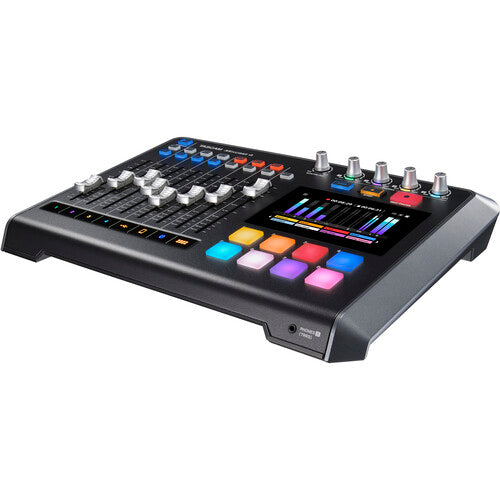

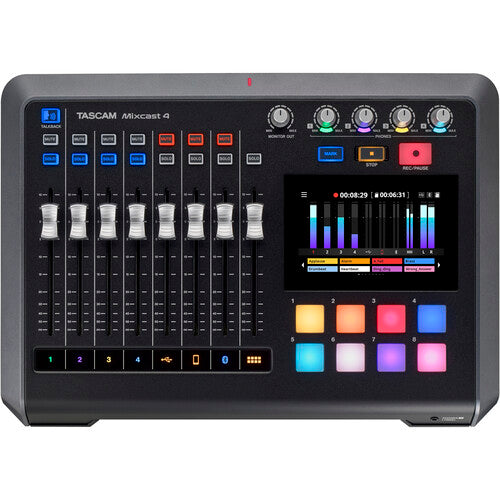

Tascam Mixcast 4 Podcast Mixer, Recorder, and USB Audio Interface

-
+
$1,109.00

Tascam

Out of stock

Tascam Miscast 4 Podcast Mixer, Recorder, and USB Audio Interface

Audio creation made easy

Miscast 4 makes professional content creation easy. For podcast creation, live streaming, event production, or voice-over, Miscast 4 can mix and record mic input with internal background music, effect sounds and jingles via the trigger pads, and external audio input from your phone, PC, or Bluetooth device.

Together with the Tascam Podcast Editor software you get a complete package including waveform editing and multi-track recording for all work steps from pre-production to completion.

Stress-free touch panel control

Equipped with four mic inputs and four individual headphones outputs, the Miscast 4 is always ready for podcast production without complicated settings. It provides all audio-related operations and workflow needed for live streaming, events, podcasts, and other applications. The auto-mixing function, for example, can automatically adjust optimal levels and set mic priority for a perfect mix.

And thanks to the 5-inch color touch screen, you can intuitively access the well-structured menu and make the desired settings with just a few simple steps.

Enhance content with real-time sound effects

The Miscast 4 comes with eight banks of fully customizable, illuminated sound pads which can be triggered during a podcast production or live broadcast. In addition to preset sound effects, users can flexibly assign new sounds, music, or even mic sounds that have been pre-recorded on the unit.

The Miscast 4 sound pads also allow for easy and on-time voice effects such as pitch transformation, reverb, and more to make live streams and recordings even more interesting and fun.

Tascam Podcast Editor available for post-editing and control

The Tascam Podcast Editor offers simple and practical editing of audio content, and track arming, as well as easy configuration and assignment of sound effects and background music to the sound pads.

There’s no need for expert knowledge of DAW software as Podcast Editor also offers intuitive graphics that will help users record audio easily using the Miscast 4. Tascam Podcast Editor is designed specifically for Miscast 4 and is available for both computers and mobile devices.

Specifications
Form Factor Tabletop
Display 5" Color Touchscreen
Channels of I/O USB:
14 Inputs / 2 Outputs
Maximum Sampling Rate 48 kHz / 24-Bit
Number of Microphone Preamps 4 Preamps
Built-In Microphone None
Input Level Adjustment 4 x via Touchscreen

Signal Processing

Pad None
Gain/Trim Range Mic Inputs:
66.5 dB
High-Pass Filter None
Solo/Mute Solo, Mute per Input Channel

Connectivity

Analog Audio I/O 4 x Combo XLR-1/4" 3-Pin Balanced Mic Input
2 x 1/4" TRS Balanced Line Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Line/Smartphone Input
1 x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output
4 x 1/4" TRS Unbalanced Headphone Output
2 x 1/4" TRS Balanced Monitor Output
1 x 1/8" / 3.5 mm TRS Unbalanced Line Output
Phantom Power 48 V (Selectable on Individual Inputs)
Digital Audio I/O None
Host Connection Protocol 1 x USB Type-C (Class-Compliant USB 2.0)
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity Bluetooth (Audio Streaming)

Performance

Frequency Response Mic Inputs:
20 Hz to 20 kHz ±0.3 dB (JEITA)
Maximum Input Level Mic Inputs:
+10 dBu (Min Gain)
1/4" Line Inputs:
+24 dBu
1/8" / 3.5 mm Line Inputs:
+8 dBV
Maximum Output Level 1/4" Monitor Outputs:
+20 dBu
1/8" / 3.5 mm Line Outputs:
+6 dBV
Headphone Output Power 1/4": 45 mW per Channel into 32 Ohms (0.1% THD)
Impedance Mic Inputs:
2.1 Kilohms
1/4" Line Inputs:
11 Kilohms
1/8" / 3.5 mm Line Inputs:
12 Kilohms
1/8" / 3.5 mm Headphone Inputs:
2 Kilohms
1/4" Monitor Outputs:
200 Ohms
1/8" / 3.5 mm Line Outputs:
200 Ohms
SNR Mic Inputs:
101 dB (A-Weighted)
THD Mic Inputs:
0.003% (A-Weighted)
Crosstalk ≥ 95 dB
EIN Mic Inputs:
≤ -125 dBu (150-Ohm Source, Max Gain)

Digital Audio

Sample Rates 48 kHz
Bit Depths 24-Bit

Audio Storage & Playback

Memory Card Slot 1 x SDXC

Compatibility

OS Compatibility Android 10 or Later
iOS 13 or Later
iPadOS 13 or Later
macOS 10.15
macOS 11
macOS 12
Windows 10
macOS 11
*As of June 2022: check with the manufacturer for the most up-to-date compatibility
Included Software None
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Required Hardware Available USB Port
Internet Connection Required for Registration

Power

Power Requirements AC/DC Power Adapter (Included)
AC/DC Power Adapter 12 VDC, Center-Positive (Included)
Power Consumption 12.5 W (Maximum)

Physical

Anti-Theft Features Kensington Security Slot
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 14.8 x 10.4 x 2.2" / 37.5 x 26.4 x 5.7 cm
14.8 x 10.5 x 2.8" / 37.5 x 26.7 x 7.1 cm (Including Controls and Protrusions)
Weight 5.7 lb / 2.6 kg

Packaging Info

Package Weight 7.8 lb
Box Dimensions (LxWxH) 16 x 12 x 5"
